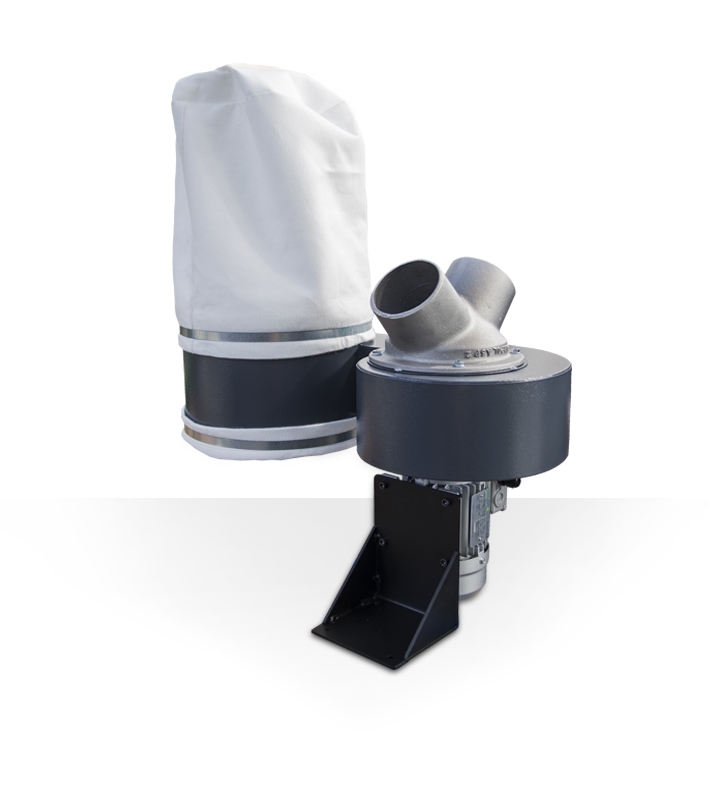

Centrifugal extractors
mod. 3/4/5/6

Electric turbine extractors for the suction of all types of dust, resulting from the processes performed on the range of MARPOL machines. They can also be combined with machines of different brands, as long as they are compatible and correspond to the requirements of the specific European regulations in force.


Technical features

  • Range of exhausters consisting of open blade fans.
  • Motor power supply: 230 / 400 Volt
  • Blade diameter: 200 / 250 mm
  • Weight: from 12 to 22 Kg
  • Headphones mandatory (according to DIN EN 352)



Technical data

Mod. V kW Rpm m3/h mm
ASP 3

400 - Hz 50 - Tf
230 - Hz 50 - Mf

0,25 2800 700 Ø 200
ASP 4 0,25 2800 700 Ø 200
ASP 5 0,75 2800 1300 Ø 250
ASP 6 0,75 2800 1300 Ø 250
Package dimensions
Mod. T U H Kg
mm
ASP 3 300 400 500 12
ASP 4 400 400 800 18
ASP 5 400 500 600 18
ASP 6 400 500 600 22
-->
