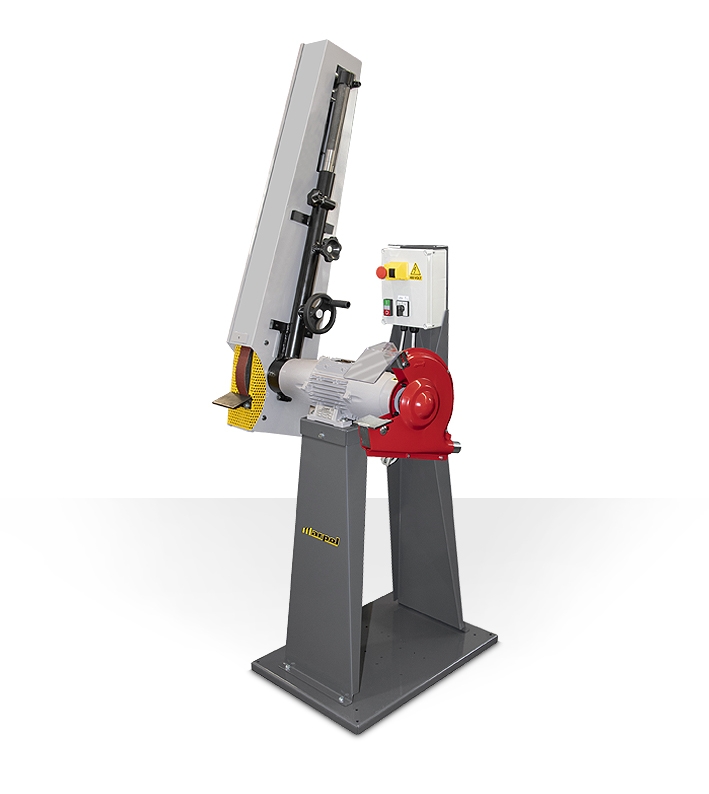

Belt sander combined with grinding wheel
mod. 523

Combined machine: telescopic grinder and grinding wheel for dry machining of metal, wood and plastic materials.


Technical features

  • Telescopic sander on rubber contact roller combined with a grinding wheel.
  • Power supply: 400 Volt
  • Motor: 1,27 kW - 1400 / 2800 Rpm
  • Abrasive belt: 50 x 2500 mm
  • Wheel dimensions: Ø200 x 25 x 20
  • Weight: 80 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V 1 Speed 2 Speed A B C D E mm Mod.
kW Rpm m/s kW Rpm m/s
mm
400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 Ø200 x 25 x 20 6
1,7 2800 30
Package dimensions
T U H Kg
mm
1200 800 1550 103
-->
