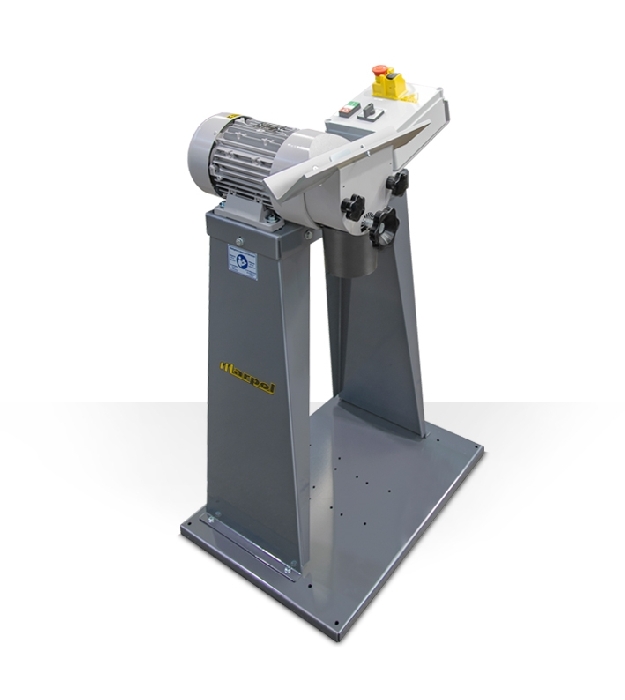

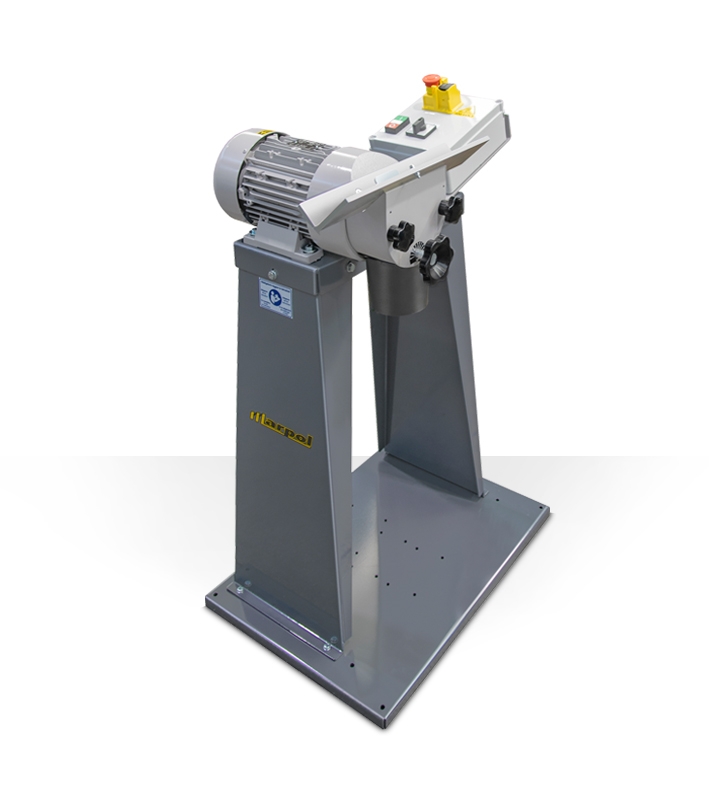

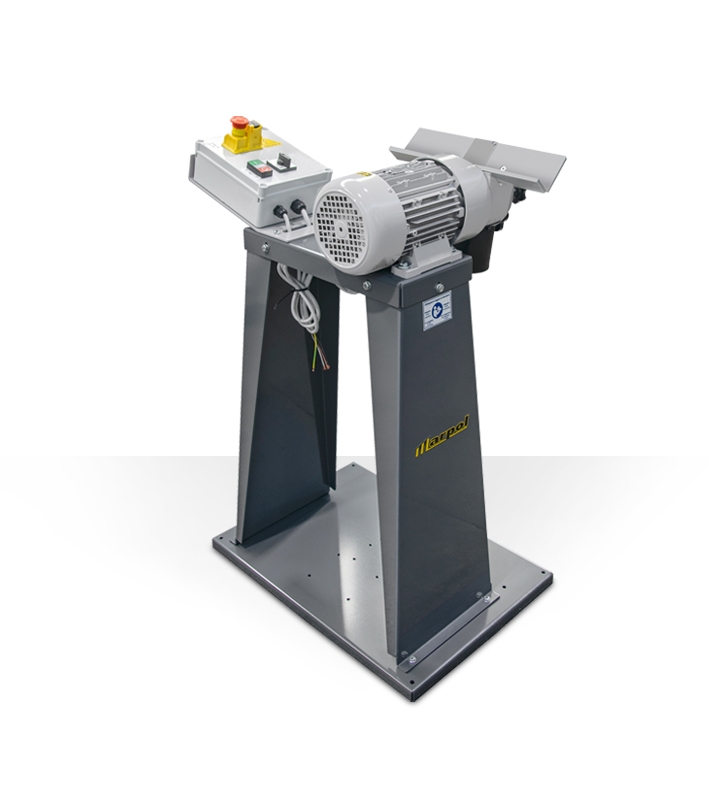

Bevelling machines
mod. 803/810

Single bevelling machines for dry machining of metal, wood and plastic materials.


Technical features

  • Precision bevelling machine with 8 hard-metal inserts in a cutter-holder with diameter mm 80.
  • Two-speed motor
  • Weight: 75 kg (mod. 803) - 40 kg (mod. 810)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed Mod. T U H kg
kW Rpm m/s kW Rpm m/s mm
803 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 6 510 840 1200 75
1,7 2800 30
810 400 - Hz 50 - TPH 0,6 1400 15 0,6 1400 15 4 450 660 1020 40
0,8 2800 30
1,5 2800 30



Cutter-holder dimensions
Mod. N O
mm
803 8 80
810 8 80



Workbench
Mod. P R Q SM
mm
803 80 400 40 10
810 80 350 40 7,5



-->
