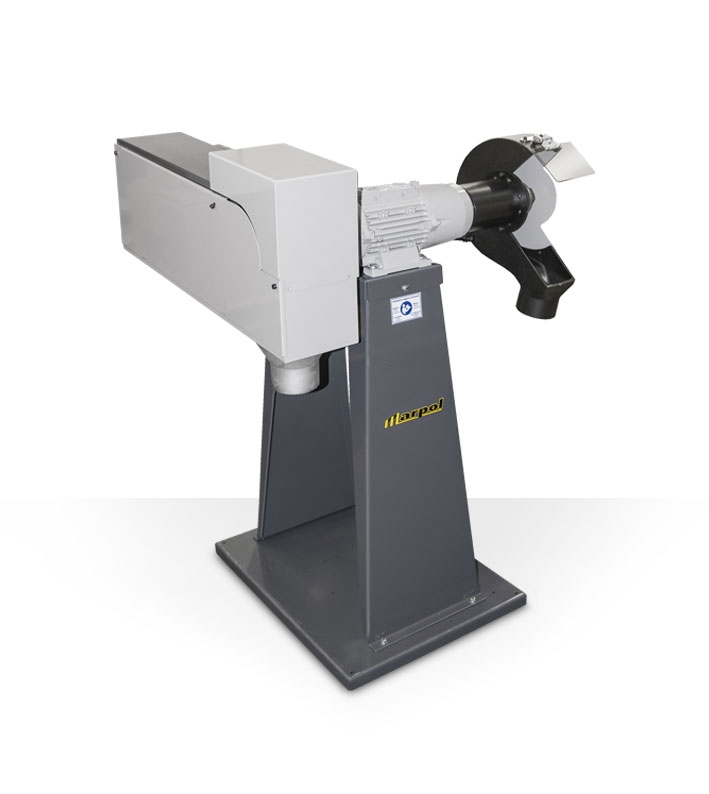

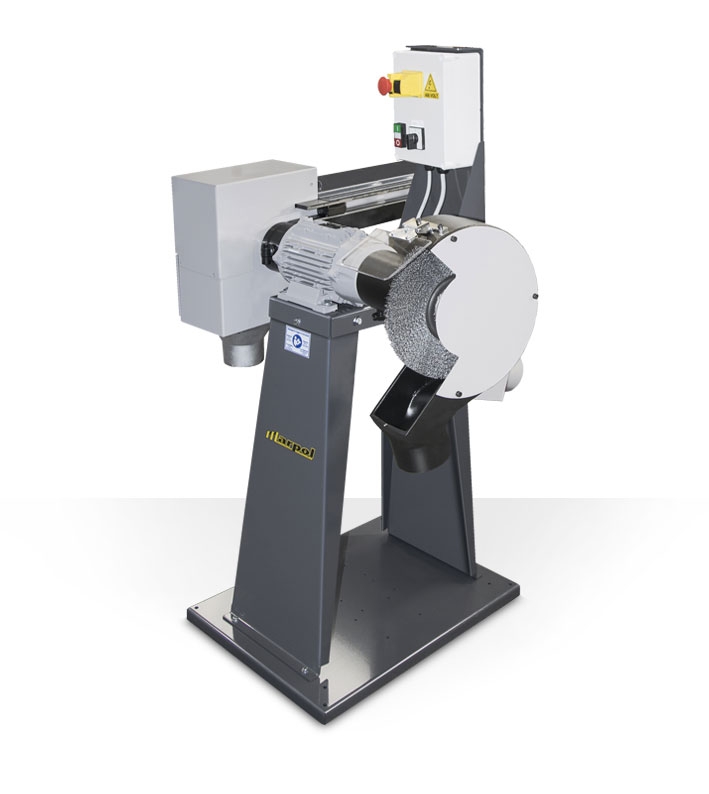

Swiveling belt sander combined with brush polishing machine

Swiveling belt sander combined with brush polishing machine
mod. 363/366

Swiveling belt sander combined with brush polishing machine for dry machining of metal, wood and plastic materials. Flat or shaped pieces can be machined.


Technical features

  • Swivel sander and cleaner
  • Power supply: 400 Volt
  • Two-speed motor
  • Abrasive belt: 150 x 1750 mm
  • Brush:  Ø250 x 25 x 60 mm
  • Weight: 115 kg (mod. 363) - 156 kg (mod. 366)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW rpm m/s A B C D E mm Mod.
mm
363 400 - Hz 50 - TPH 1,27 1400 15 200 200 500 150 1750 Ø250x25x60 6
1,27 1400/
2800		 15
1,7 30
366 400 - Hz 50 - TPH 2,25 1400 15 200 315 625 250 2000 Ø250x25x60 6
2,25 1400/
2800		 15
3 30
Package dimensions
Mod. T U H Kg
mm
363 980 880 1200 115
366 1100 1020 1100 156
-->
