Swiveling belt sanders

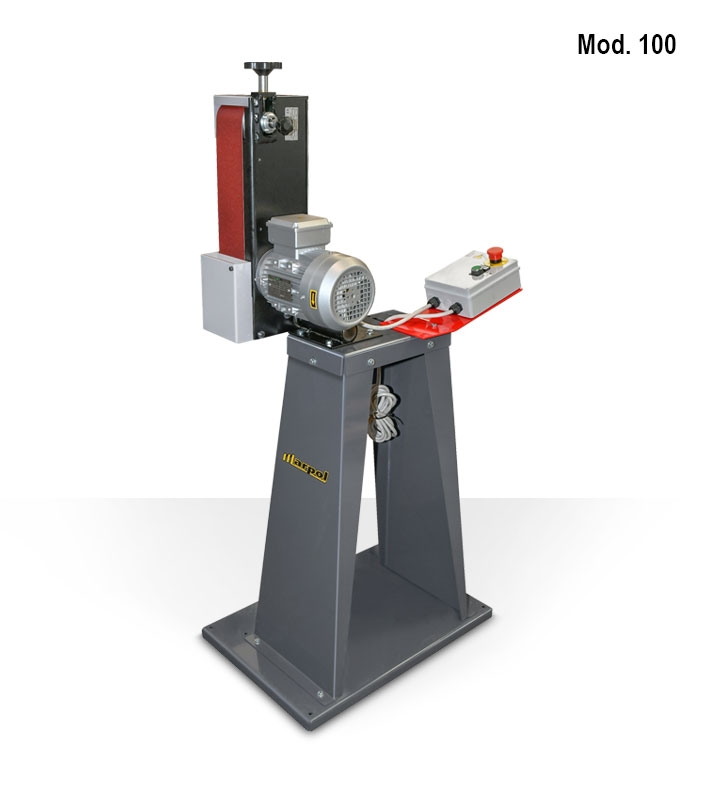

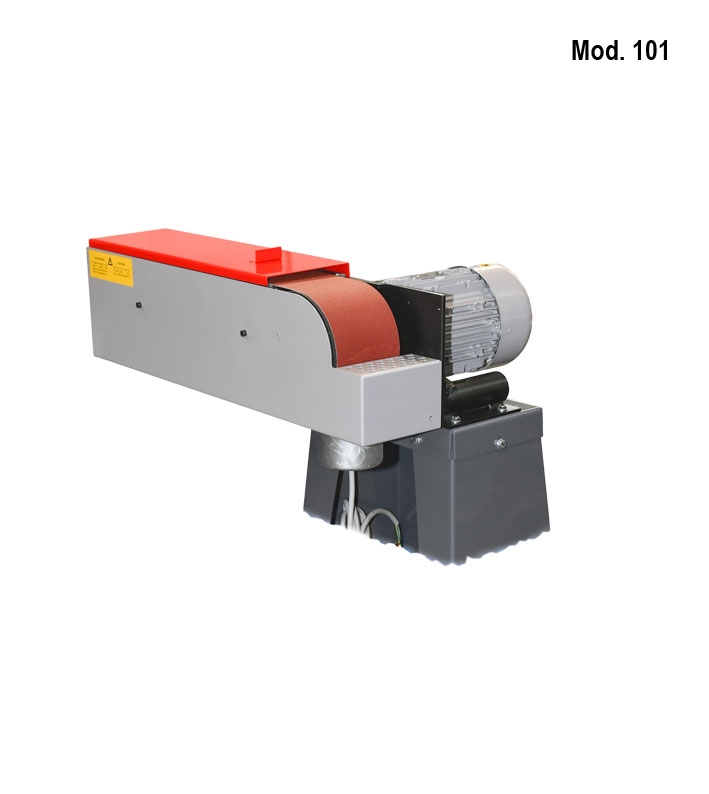

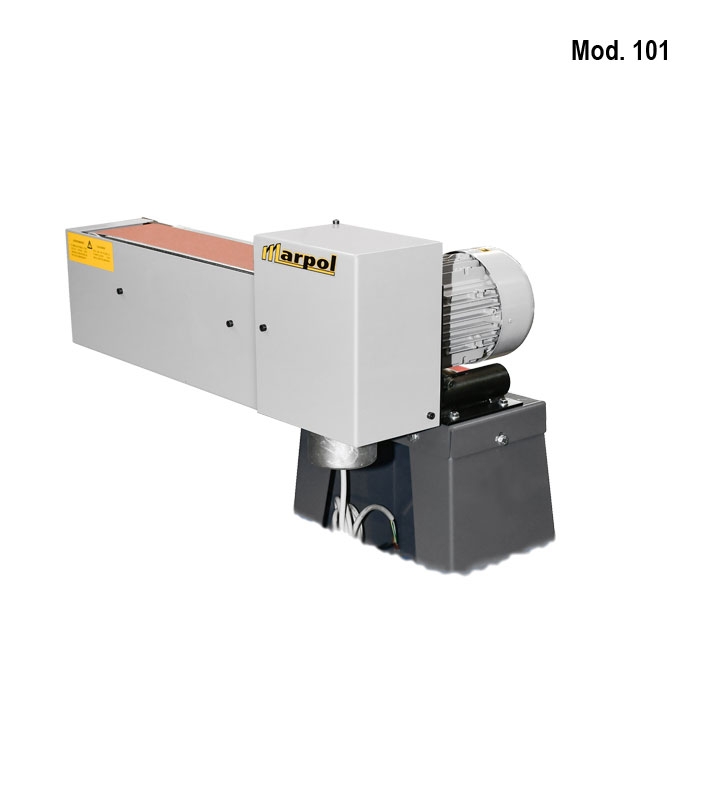

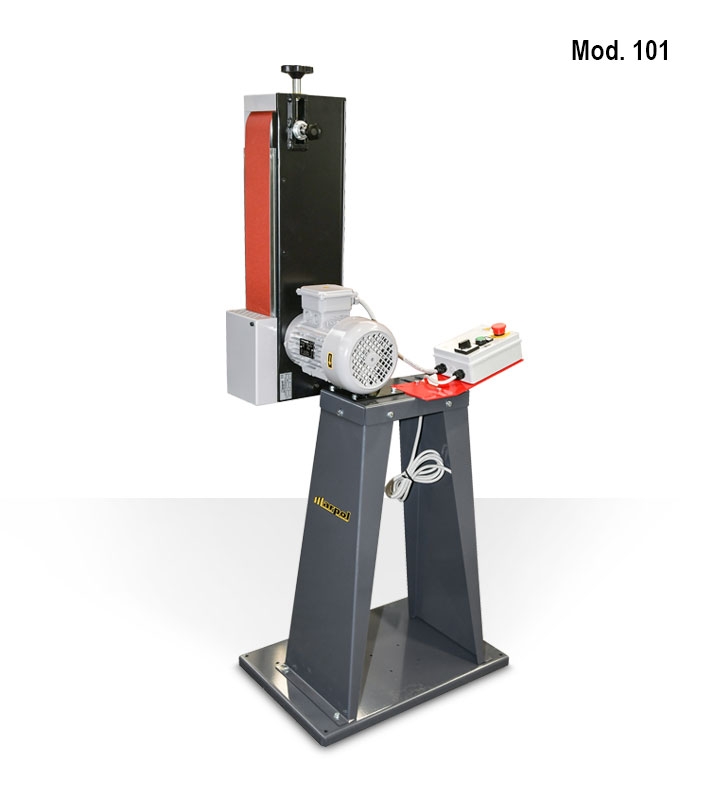

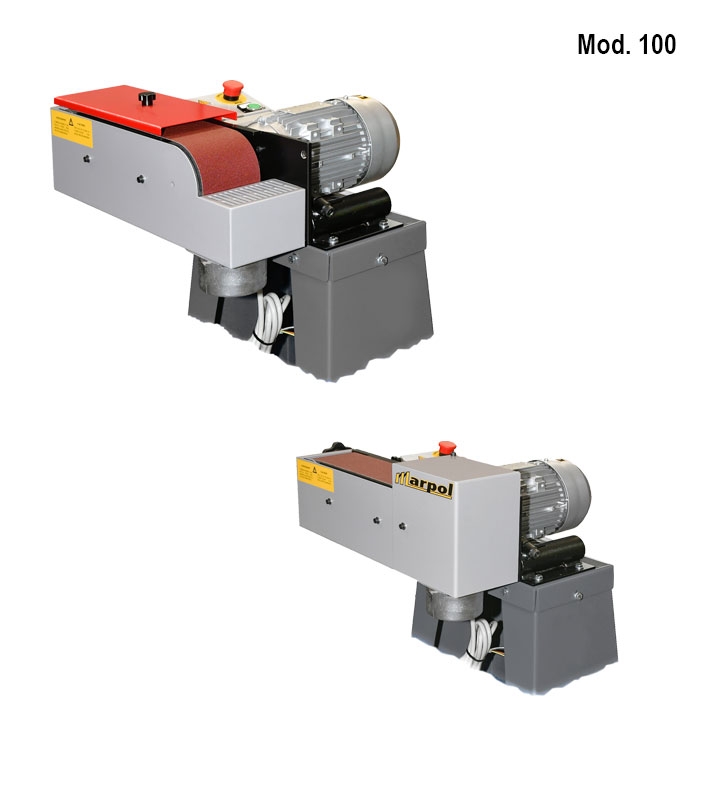

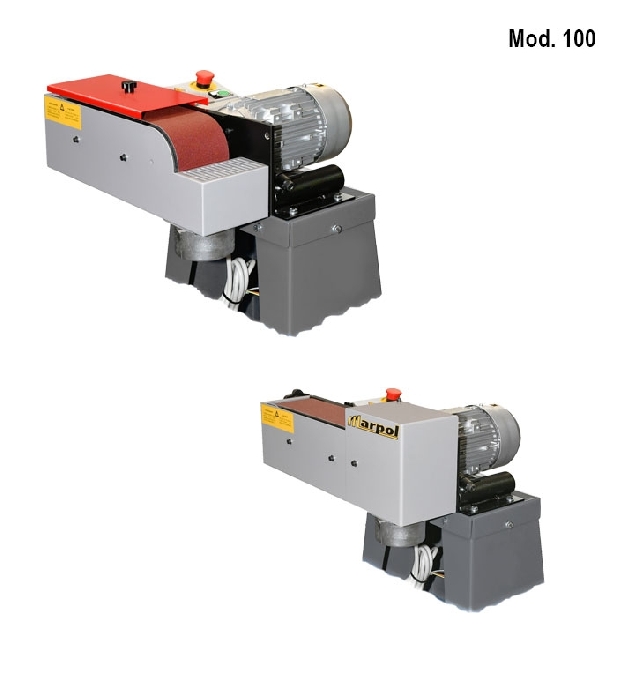

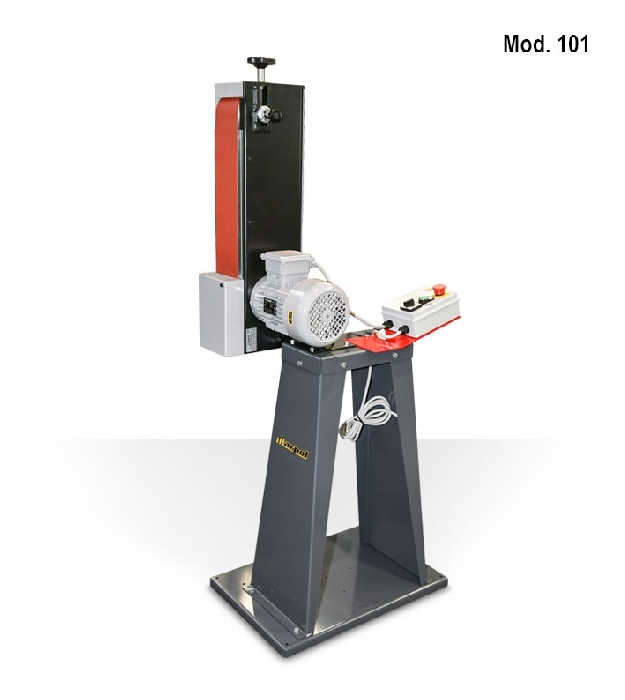

mod. 100/101

Sanders with swiveling belt for dry processing of metal, wood and plastic materials (with the adoption of appropriate abrasive belts). Version with base or workbench.

Technical features

  • Horizontal and vertical sanders with base or workbench.
  • Machines produced with resistant and long-lasting materials to ensure the best sander performance.
  • Available with 100-grain belt, upon request available also with different grain.
  • Motor: from 1,1 to 2,2 Kw
  • Abrasive belt: 100 x 1000 mm (mod.100)
  • Abrasive belt: 120 x 1500 mm (mod. 101)
  • Weight: 58 kg (mod. 100) - 74 kg (mod. 101)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V

kW

Rpm m/s A B C D E Mod.
mm
100 400 - Hz 50 - TPH 1,1 2800 19 130 130 270 100 1000 4
230 - Hz 50 - SPH
101 400 - Hz 50 - TPH 1,5 1400/2800 14 180 150 430 120 1500 4
230 - Hz 50 - SPH 2,2 2800 28
Package dimensions
Mod. T U H Kg
mm
100 400 650 300 58
101 450 850 350 74
-->
