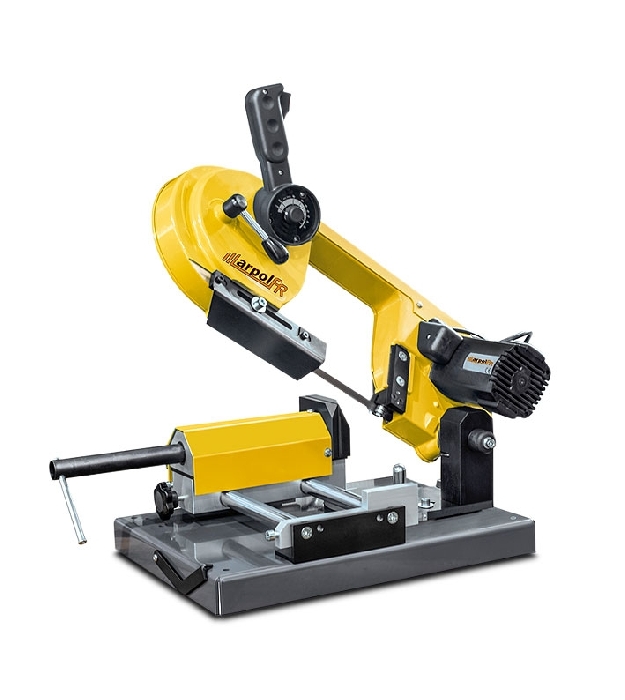

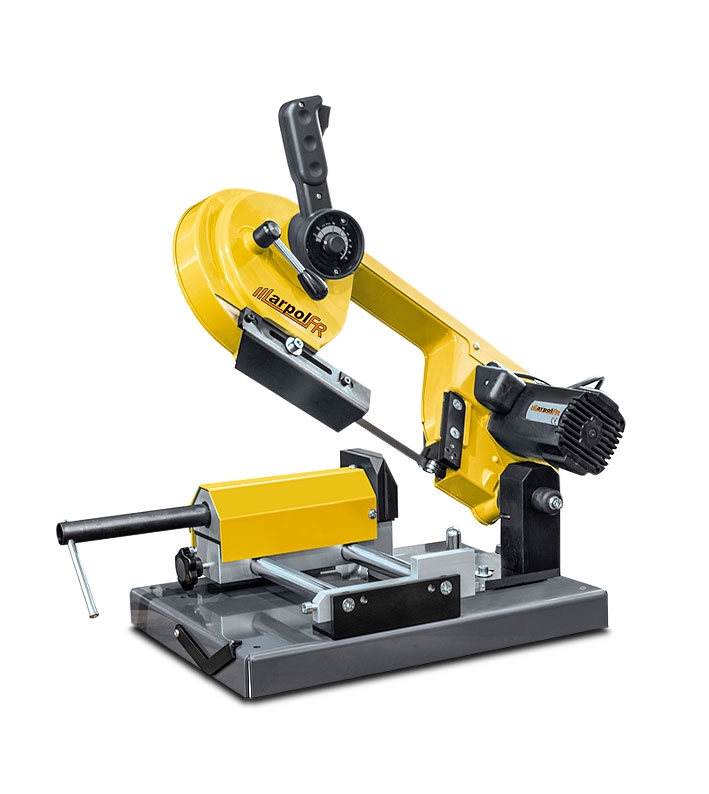

Stationary/portable band saw
mod. 90

Stationary/portable band saw, for dry cutting of metal material with a maximum diameter of 150 mm.


Technical features

  • Switch with safety device
  • Electronic speed regulator
  • RH cut
  • LH cut
  • Cutting angle adjustment
  • Vice sliding on chromed bar and self-lubricating bushings
  • Automatic blade tension
  • Cutting capacity: profiled material
  • Optional base
  • Spare blades for Model 90 - bi-metallic blade, pitch 8-12 for solid parts, standard parts, section bars and pipes, for low thickness
  • Headphones mandatory (according to DIN EN 352)
Technical data

V kW m/min. Cutting depth Kg T U H Kg
mm mm
230 - Hz 50 - SPH 3,75 20÷110 150 (max) 52 370 700 460 53
48 - Hz 50 - SPH 1,8

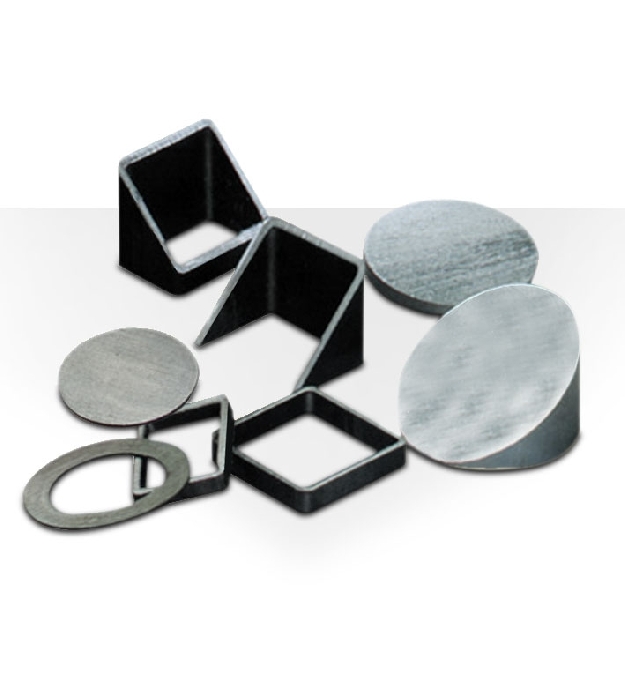

Cutting capacity

mm Cut mm mm mm
1440 x 13 x 0,65 150 125 150x125
45° 75 50 70x50
Overall dimensions
A B C
mm
369 699 459
-->
