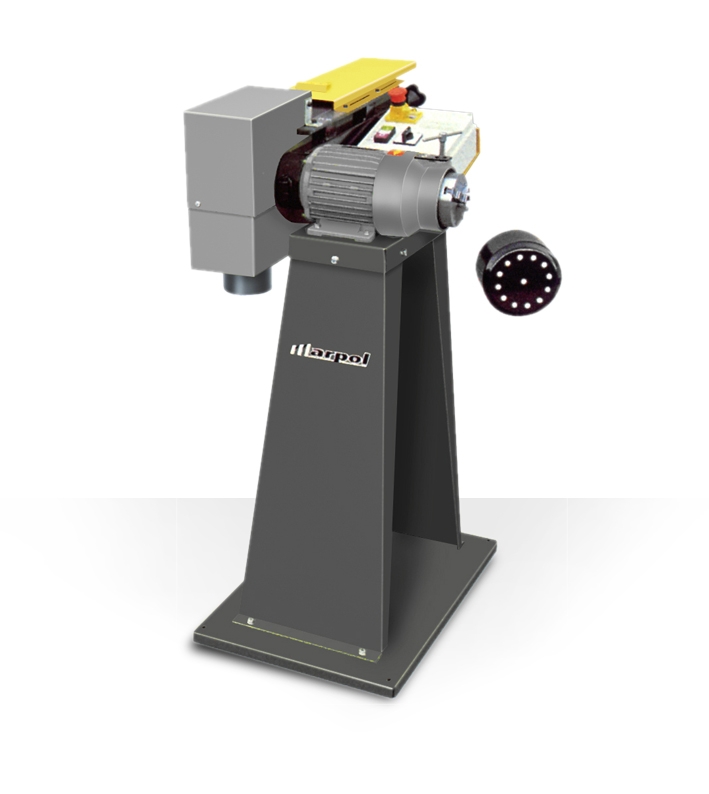

Special - Combined spindle with swiveling belt
mod. 393

Combined sanders with self-centring spindles for the dry processing of metal materials, wood and plastic materials (with the adoption of appropriate abrasive belts and wheels). Flat or shaped pieces can be machined.


Technical features

  • Combined sanders with self-centring spindles.
  • Two-speed version available
  • Three-phase motor 400 Volt

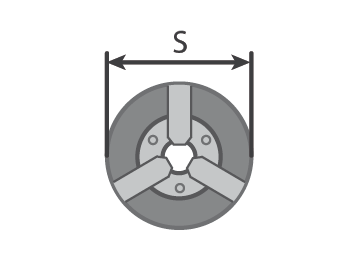

  • Spindle size: Ø125 mm
  • Abrasive belt: 150 x 1750 mm
  • Weight: 95 Kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V 2 Speed 2 Speed A B C D E S Mod.
kW Rpm m/s kW Rpm m/s mm mm
400 - Hz 50 - TPH 1,27 1400 15

1,27

1400

15 200 200 500 150 1750 125 6
1,7 2800 30



Technical data
T U H Kg
mm
1000 1250 1200 95



-->
