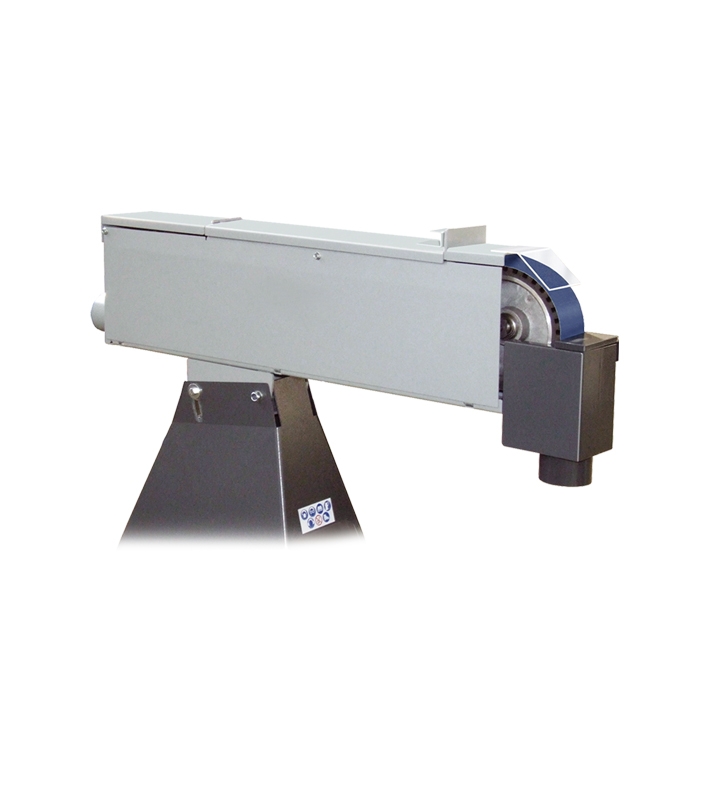

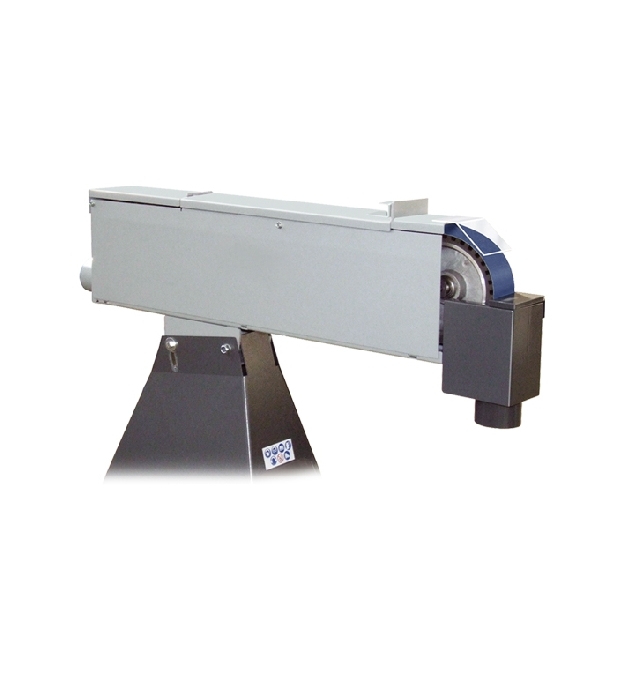

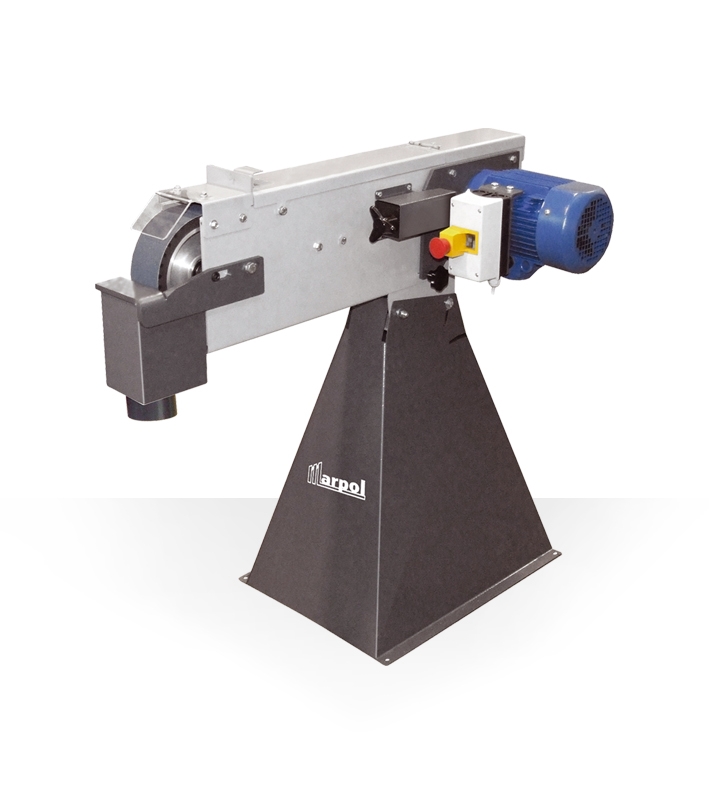

Swiveling belt sanders
mod. 3075/3150

Swiveling belt sanders for dry machining of metal, wood and plastic materials (with the adoption of appropriate abrasive belts).


Technical features

  • A series of new machines produced with the typical reliability, versatility and safety features derived from the long-standing experience and constant technological research of MARPOL F.R. SRL
  • The new production range is identified by new colours.
  • Power supply: 400 Volt
  • Motor: 2/3 Kw - 1400/2800 Rpm
  • Abrasive belt: 75 x 2000 mm (mod. 3075) - 150 x 2000 mm  (mod. 3150)
  • Weight: 65 kg (mod. 3075) - 85 kg (mod. 3150)
  • Headphones mandatory (according to DIN EN 352)



Technical data

Mod. V kW

rpm

m/s mm Mod. T U H kg
mm
3075 V 400- Hz 50 2 1400 15 75 x 2000 4 400 1100 400 65
3 2800 30
3150 V 230- Hz 50
V 400- Hz 50
3 2800 30 150 x 2000 85



-->
