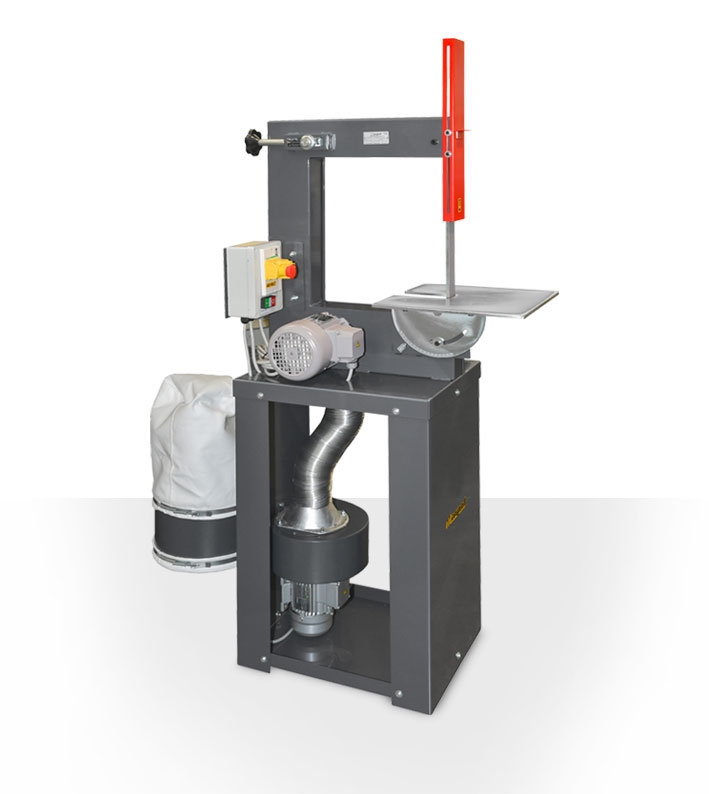

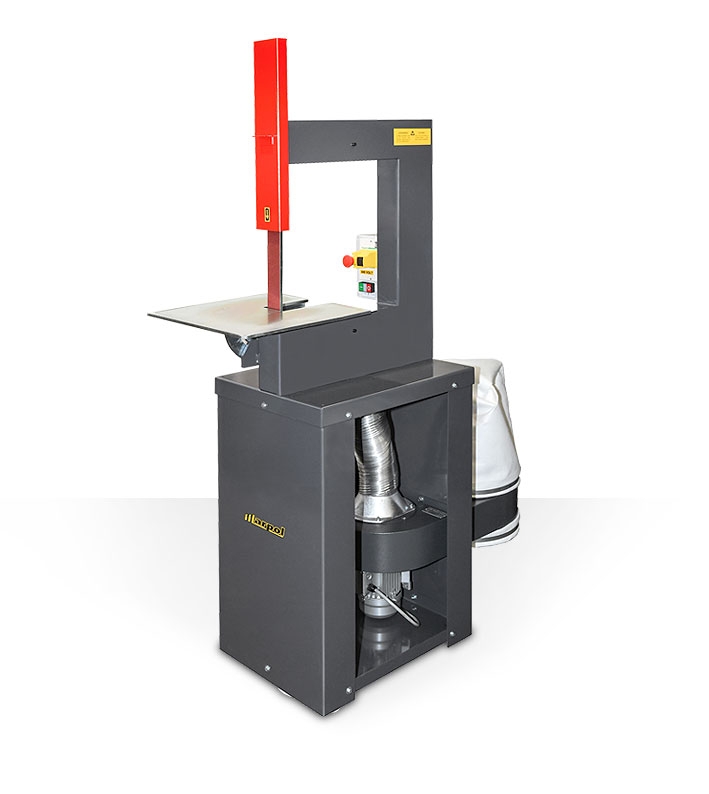

Vertical belt sander
mod. 2050

4-roller vertical sanding machine with swiveling worktop for dry machining of flat or shaped pieces in metal, wood and plastic materials.


Technical features

  • Power supply three-phase: 400 Volt
  • Motor: 1,1 kW - 2800 Rpm
  • Abrasive belt: 2000 x 50 mm
  • Weight: 86 Kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V

kW

Rpm m/s A B C D E F G I Mod. T U H Kg
mm mm mm
V 400 - Hz 50 TPH 1,5 2800 21 145 50 440 50 2000 - 400 400 4 760 440 1520 86



-->
