Diamond cutting-off machine

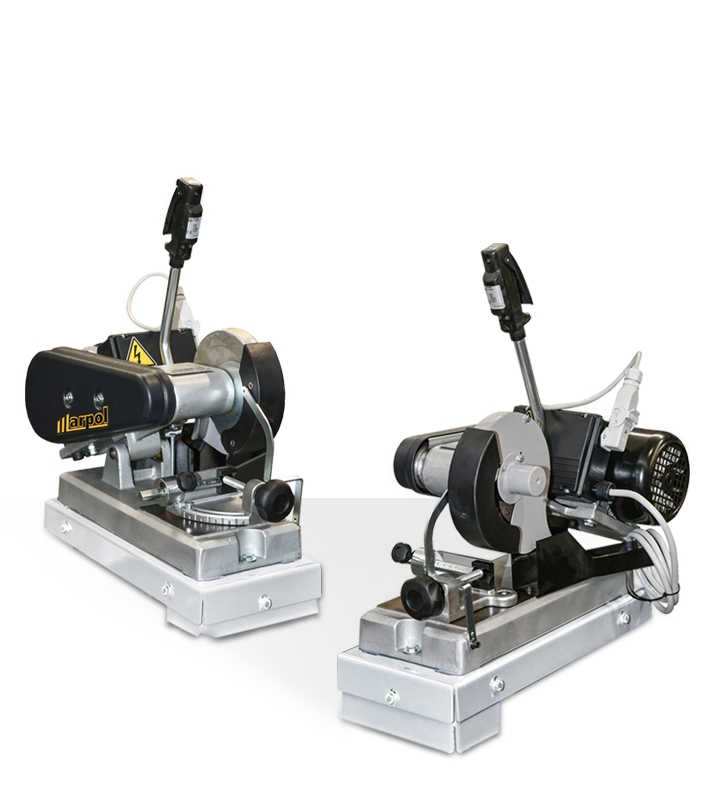

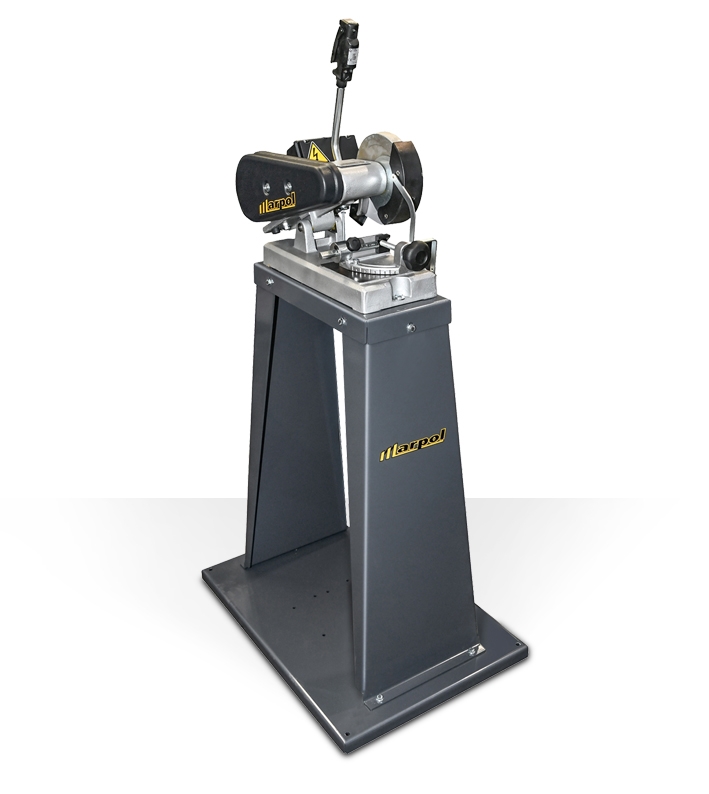

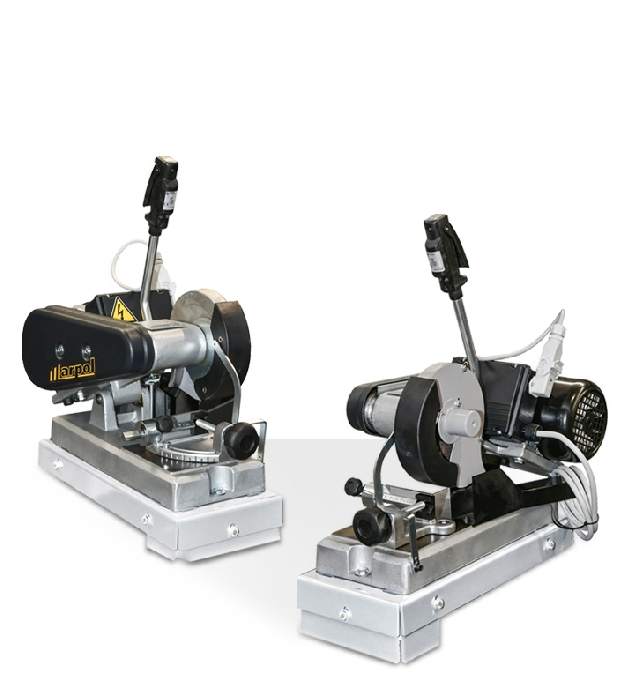

Diamond cutting-off machine
mod. 99

The diamond cutting-off machine are designed, manufactured and patented for the dry processing of metal, wood and plastic components (with the corresponding specific abrasive belts). It can be used with both flat or shaped components.


Technical features

  • Graduated vice
  • Switch-ON manual knob
  • Spark protection system
  • 0.75 HP - 2800 Rpm
  • Cutting disc size: 150 x 1 mm and 150 x 1.5 mm
  • Cutting speed: 6000 Rpm
  • Headphones mandatory (according to DIN EN 352)
Technical data
V

kW

 Rpm Sand disc Cutting speed Kg
mm Rpm
400 - Hz 50 - TPH 0,87 2800  Ø 150x1 6000 25
Ø 150x1,5
Power supply
Power supply
V400 Three-phase
V230 Single-phase
A 2,50 Three-phase “delta” voltage
A 1,45 Three-phase “star” voltage
Overall dimensions
A B C
mm
264 484 512
-->
