Centrifugal extractor
mod. 12

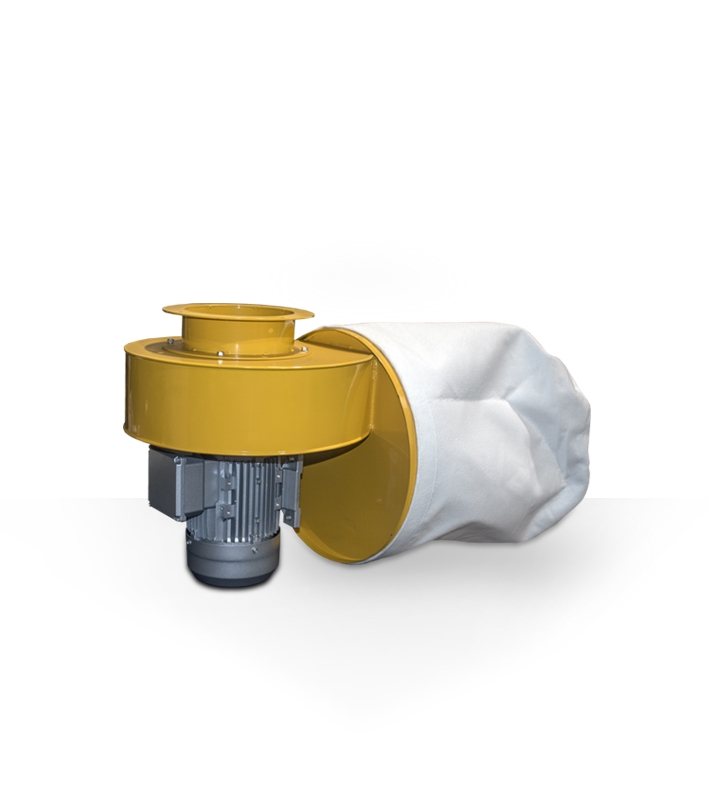

Centrifugal extractor consisting of open blade motorized fan.


Technical features

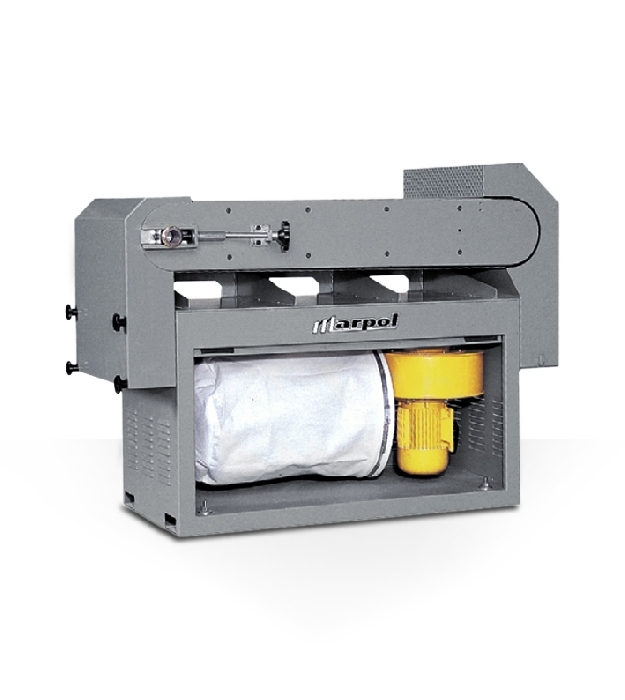

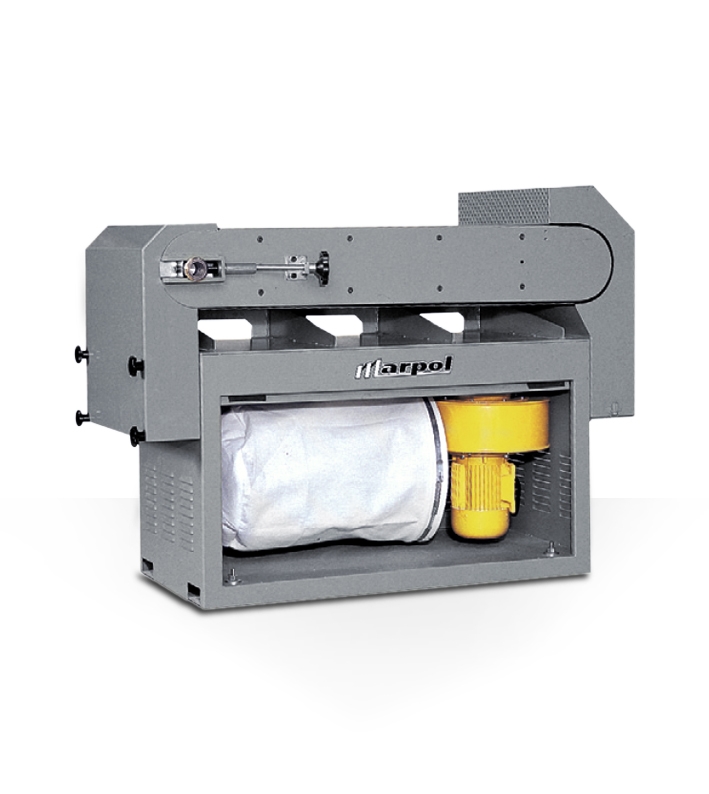

  • Centrifugal extractor for model 206
  • Motor power supply: 230 / 400 Volt.

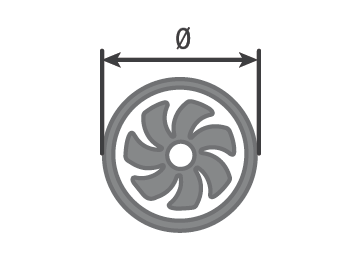

  • Blade diameter: 250 mm
  • Weight: 25 Kg
  • Headphones mandatory (according to DIN EN 352)
Dati tecnici

V kW Rpm m3/h mm

400 - Hz 50 - Tf
230 - Hz 50 - Mf

0,75 2800 1300 Ø 250
Package dimensions
T U H Kg
mm
600 600 600 25
-->
