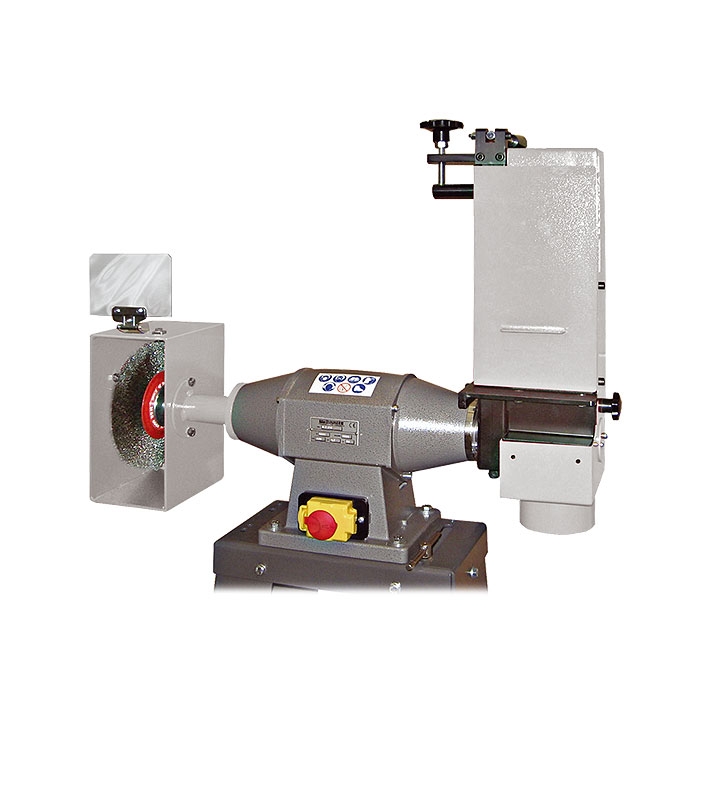

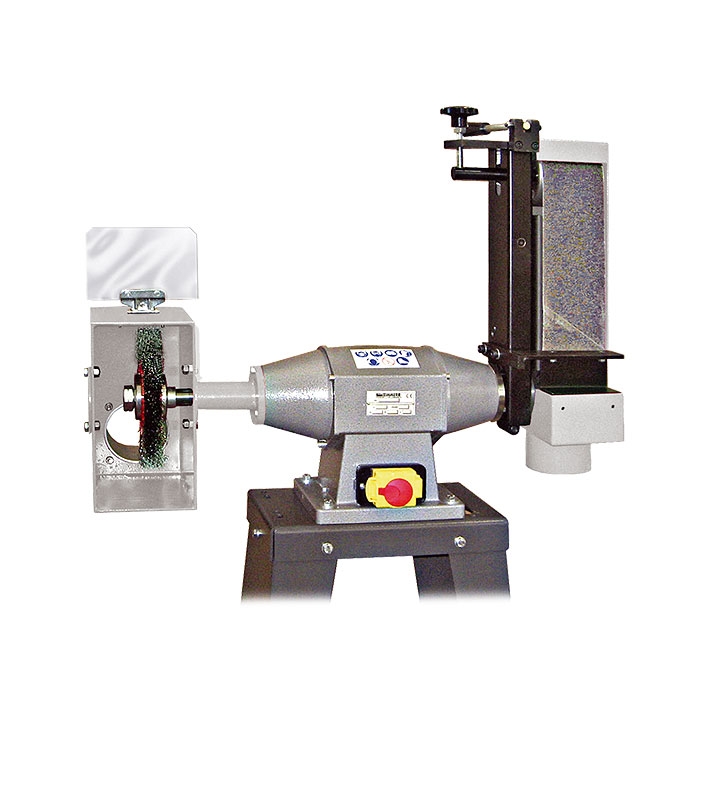

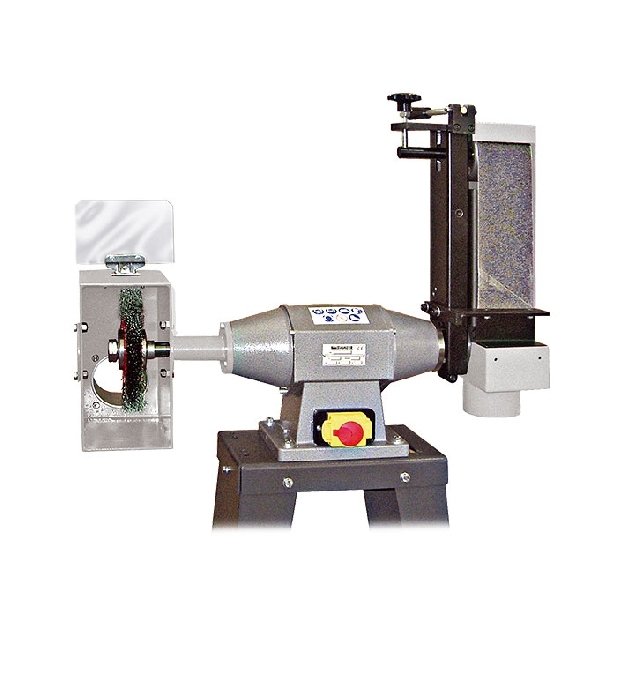

Swiveling belt sander combined with brush polishing machine
mod. 205

Swiveling belt sander combined with brush polishing machine for dry machining of metal, wood and plastic materials.


Technical features

  • A series of new machines produced with the typical reliability, versatility and safety features derived from the long-standing experience and constant technological research of MARPOL F.R. Srl.
  • The new production range is identified by new colours.
  • Power supply: 400 Volt
  • Motor: 1,1/1,3 Kw - 2800 Rpm
  • Abrasive belt: 100 x 1000 mm

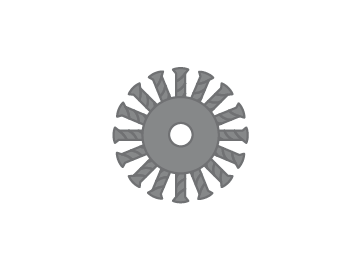

  • Brush: Ø200 x 20 x 40 mm
  • Weight: 50 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V kW Rpm m/s mm mm Mod. Kg
230 - Hz 50 - SPH 1,1 2800 30 100 x 1000 Ø200 x 20 x 40 4 500
400 - Hz 50 - TPH 1,3
Overall dimensions
A B C
mm
600 350 1500
Package dimensions
T U H Kg
mm
500 800 1600 60
-->
