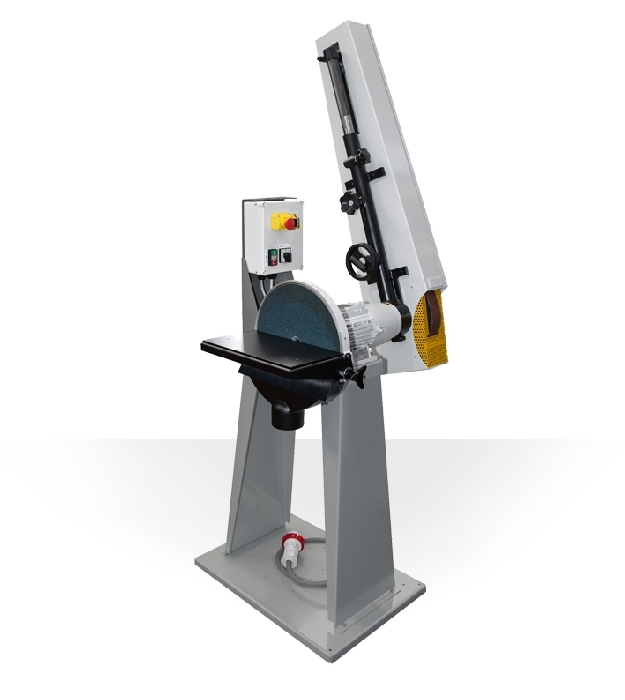

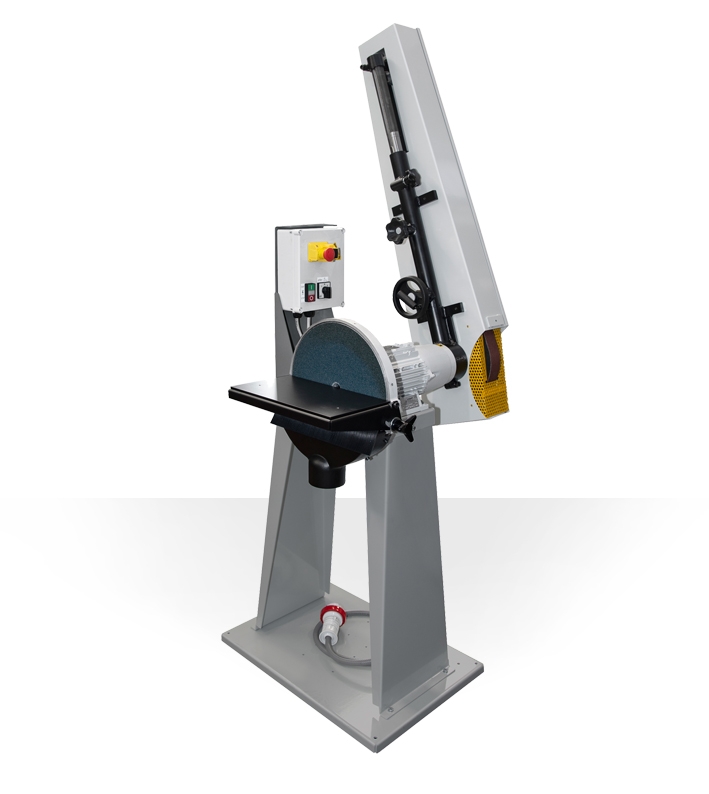

Swiveling disc sander combined with telescopic belt
mod. 453

Orbital disc sander and telescopic grinder on rubber roller designed for dry machining of metal, wood and plastic materials.


Technical features

  • Orbital disc sander and telescopic grinding machine on rubber roller.
  • Power supply: 400 Volt
  • Telescopic belt dimensions: 50 x 2500 mm
  • Disc: 350 mm
  • Weight: 102 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data

V 1 Speed 2 Speed A B C D E Mod. T U H Kg
kW Rpm m/s kW Rpm m/s mm mm
400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 6 920 780 2100 102
1,7 2800 30
Workbench
F G I
mm
350 200 400



-->
