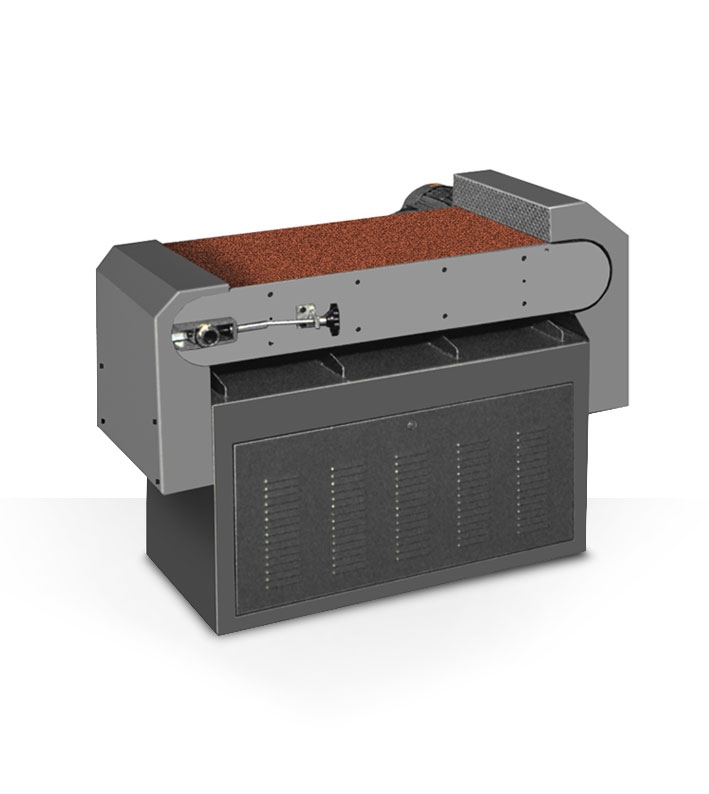

Horizontal belt sander
mod. 206

Horizontal sander designed for dry machining of metal, wood and plastic materials (with the adoption of appropriate abrasive belts).


Technical features

  • Large horizontal sander with relevant rigidity features.

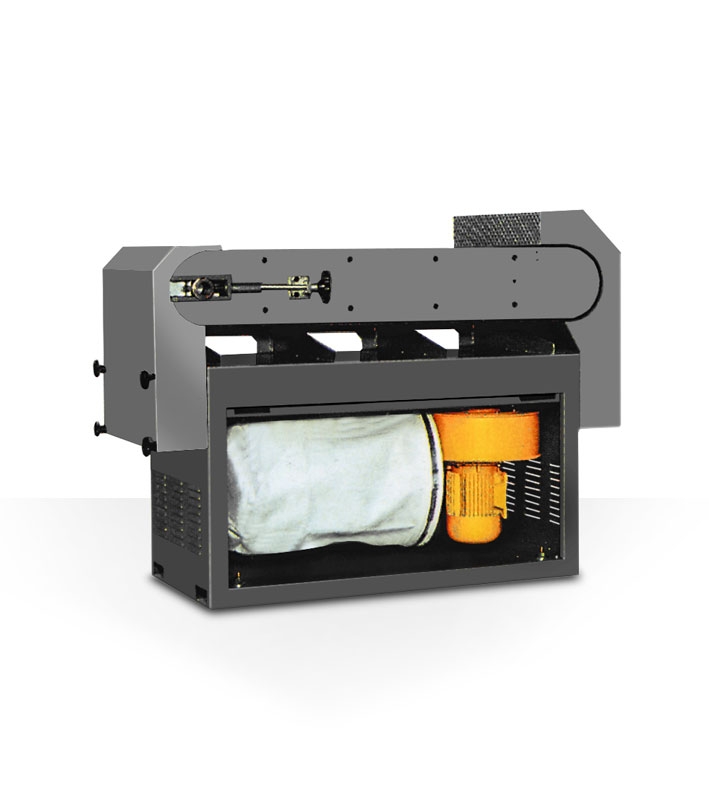

  • Preset to install exhauster mod. ASP. 12 upon request.
  • Motor: 2,2 kW - 1400 Rpm
  • Abrasive belt: 2680 x 500 mm
  • Weight: 310 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V kW Rpm m/s A B C D E Mod. Kg
mm

V 400 - Hz 50 TPH

2,2 1400 15 200 510 900 500 2680 12 310
Overall dimensions
A B C
mm
1100 900 1000
Package dimensions
T U H Kg
mm
1200 1000 1100 320
-->
