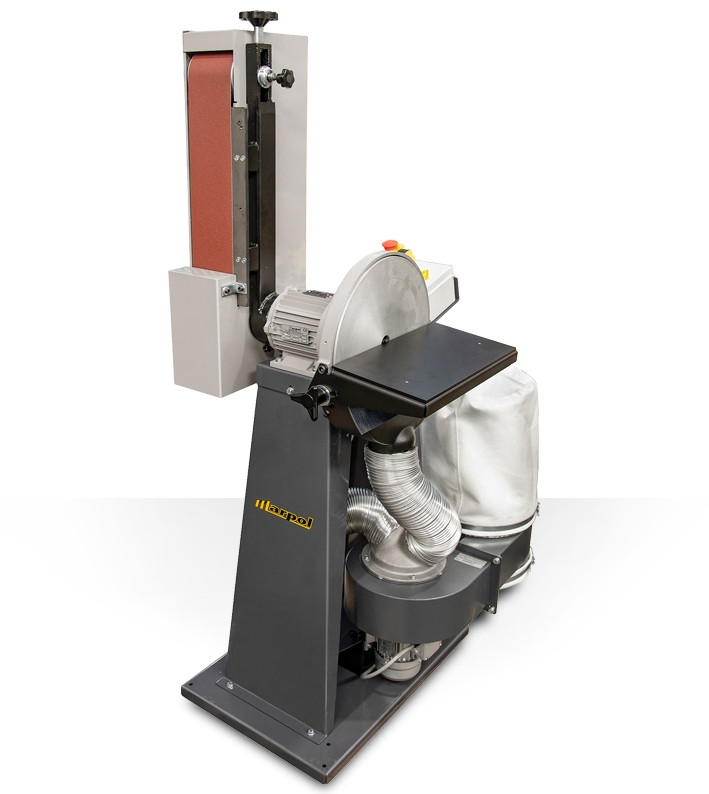

Swivel and orbital belt and disc sanders
mod. 314/343/346

Swivel and orbital belt and disc sanders for dry machining of metal, wood and plastic materials.


Technical features

  • Swivel and orbital belt and disc sanders.
  • Power supply: 230/400 Volt
  • Abrasive belt: 150 x 1750 mm
  • Disc dimensions: 350 - 500 mm
  • Weight: 85 kg (mod. 314) - 100 kg (mod. 343) - 155 kg (mod. 346)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V

1 Speed

2 Speed A B C D E Mod.
kW Rpm m/s HP Rpm m/s mm
314 400 - Hz 50 - TPH 0,6 1400 15 0,6 1400 15 180 160 410 120 1500 4
230 - Hz 50 - TPH 1,5 2800 30 0,8 2800 30
343 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 200 200 500 150 1750 6
1,7 2800 30
346 400 - Hz 50 - TPH 2,25 1400 15 - - - 200 315 625 250 2000 6
Workbench
Mod. F G I
mm
314 350 200 400
343 350 200 400
346 500 300 550
Package dimensions
Mod. T U H Kg
mm
314 900 680 1150 85
343 1000 750 1150 100
346 1100 1070 1250 155
-->
