Belt sanders combined with telescopic swiveling belt

Belt sanders combined with telescopic swiveling belt
mod. 353/356

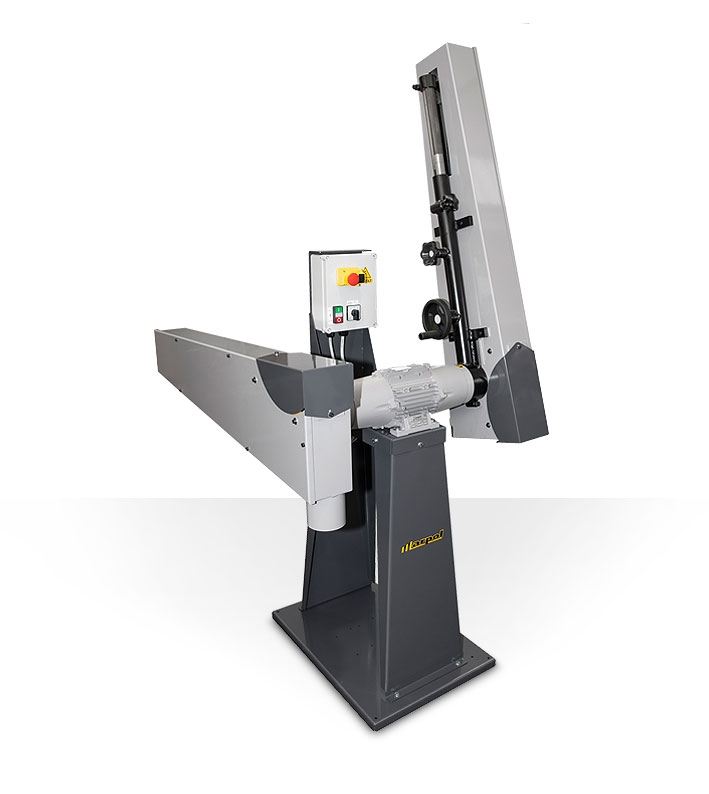

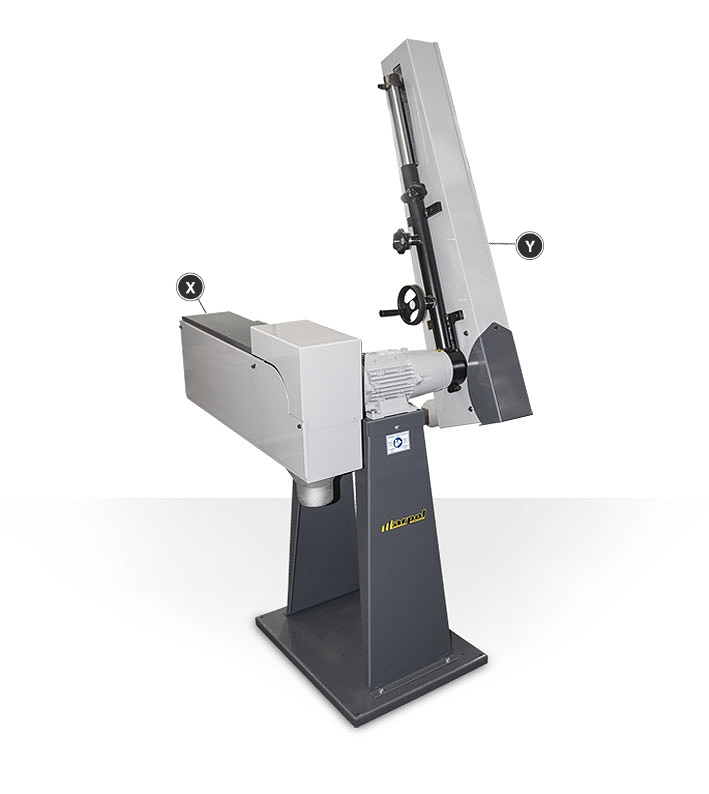

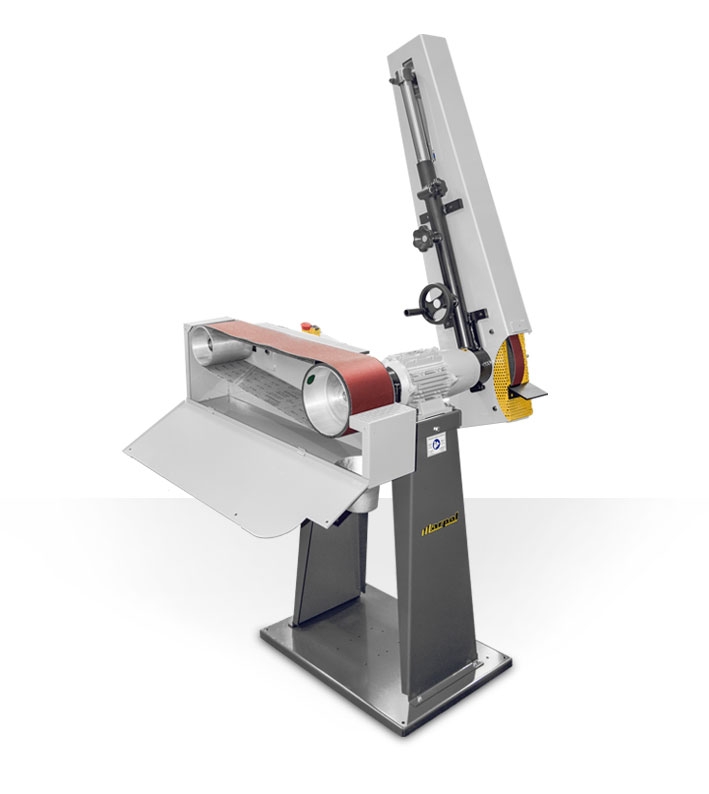

Telescopic sanders and grinders machine on rubberized roller for dry processing of metal, wood and plastic materials.


Technical features

  • Belt sanders and telescopic grinding machine on rubber roller.
  • Power supply: 230/400 Volt
  • Abrasive belt: 150 x 1750 mm (mod. 353) - 150 x 1500 mm (mod. 356)
  • Weight: 130 kg (mod. 353) - 180 kg (mod. 356)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed A B C D E Mod.
kW Rpm m/s kW Rpm m/s
mm
353 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 200
250		 200 500 150
15		 1750
2500		 6
1,7 2800 30
356 400 - Hz 50 - TPH 2,25 1400 15 2,25 1400 15 200
250		 315 625 250
15		 2000
2500		 6
3 2800 30
Package dimensions
Mod. T U H Kg
mm
353 980 780 2100 130
356 1100 930 2100 180
-->
