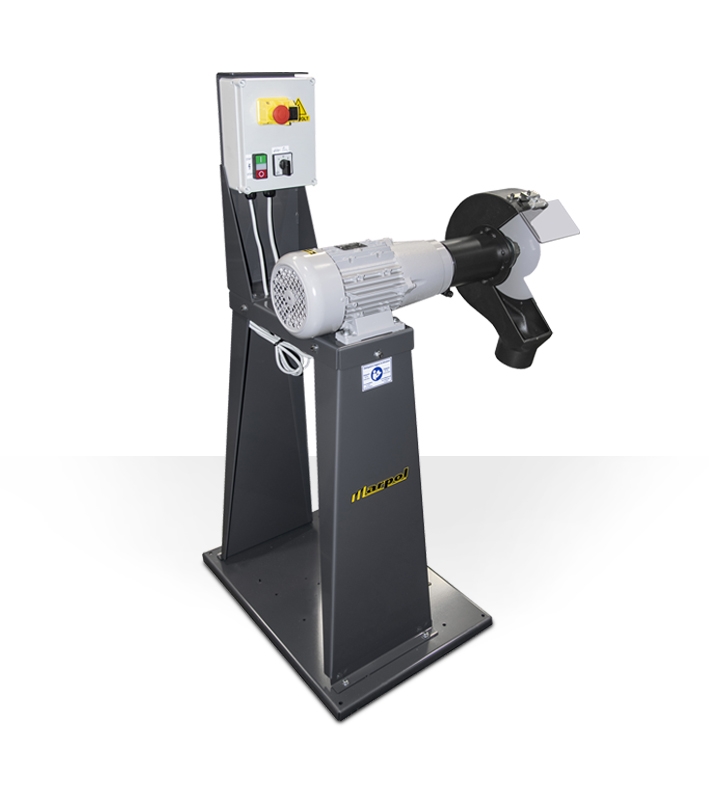

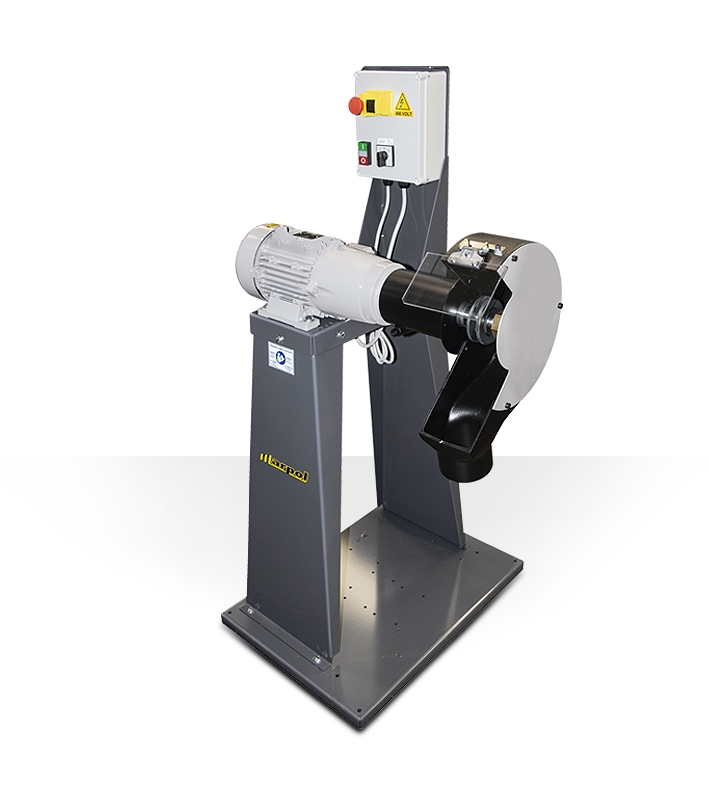

Single brush polishing machine
mod. 603/606

Brush polishing machines for dry processing of metal, wood and plastic materials (with the adoption of appropriate brushes). Flat or shaped pieces can be machined.


Technical features

  • Single-arm cleaners.
  • Two-speed motor
  • Brush: Ø250 x 25 x 60 mm
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed mm Mod.
kW Rpm m/s kW Rpm m/s
603 400 - Hz 50 - TPH

1,27

1400

15 1,27 1400 15 Ø250 x 25 x 60 6
1,7 2800 30
606 400 - Hz 50 - TPH

2,25

1400

15 2,25 1400 15 Ø250 x 25 x 60 6
3 2800 30
Package dimensions
Mod. T U H Kg
mm
603 700 700 1100 75
606 700 700 1100 75



-->
