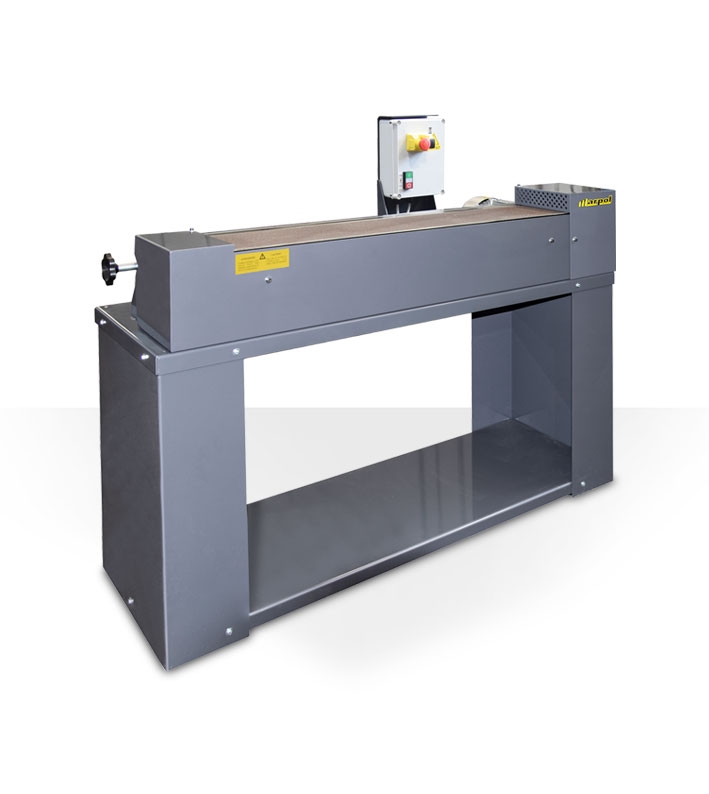

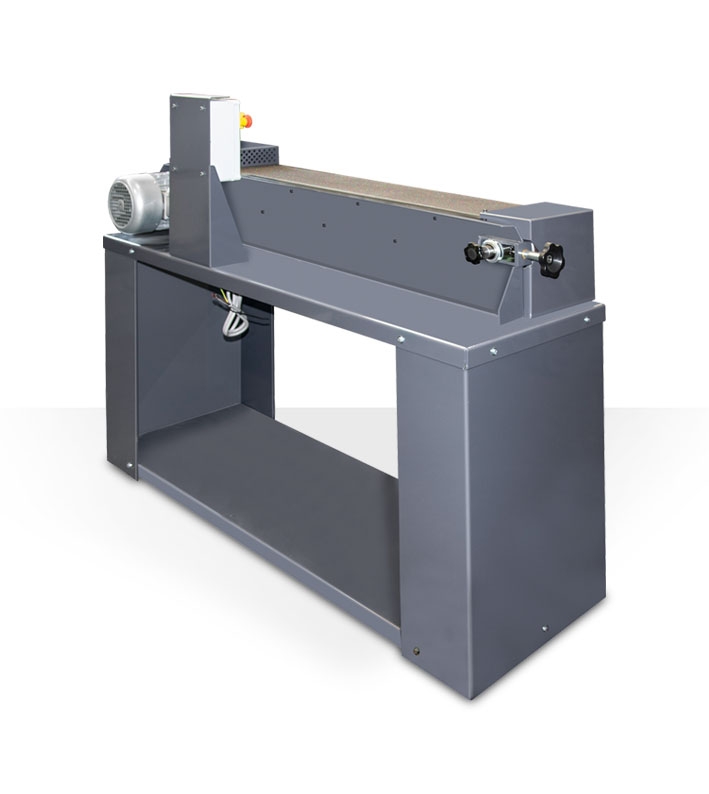

Horizontal belt sander
mod. 105

Horizontal sanders designed for dry machining of metal, wood and plastic materials (with the adoption of appropriate abrasive belts).

Technical features

  • A powerful electric motor for this machine allowing to use a 3000 mm long belt.
  • A product especially designed for big-component processing operations where sanding speed and precision are essential.
  • It is preset for the integration of an exhauster specifically designed for this model.
  • Motors up to 2,2 kW at 1400 rpm
  • Abrasive belt: 200 x 3000 mm
  • Weight: 150 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V kW Rpm m/s A B C D E Mod. Kg
mm

V 400 - Hz 50 TPH

2,2 1400 15 200 250 1145 200 3000 6 137
Overall dimensions
A B C
mm
1500 450 900
Package dimensions
T U H Kg
mm
560 1600 1100 147
-->
