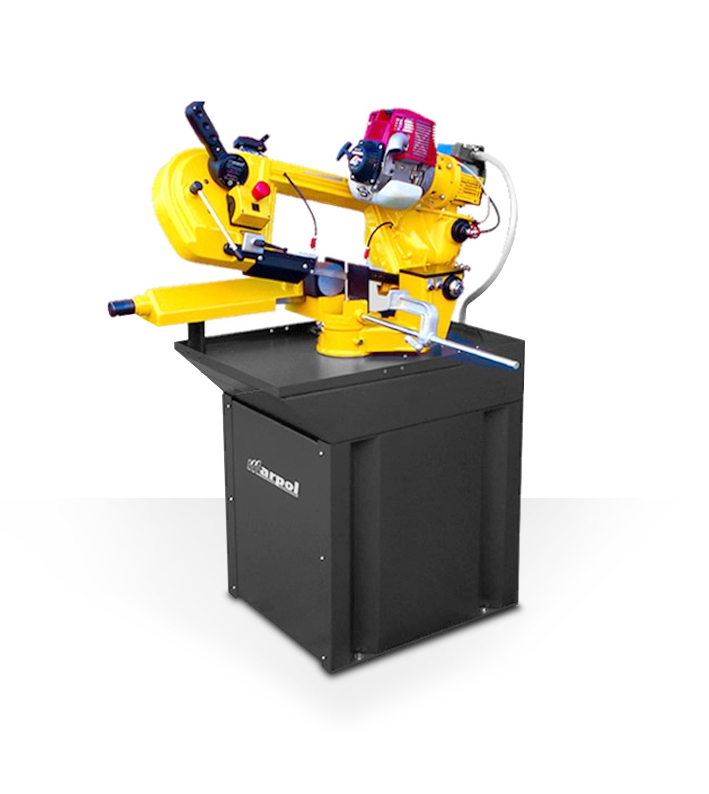

Stationary band saw with internal combustion engine
mod. 89

Stationary band saw with Honda 4-stroke engine.
The machine can be used for cuts ranging from 0° to 60°, in compliance with the limits and environmental conditions.


Technical features

  • Bi-metallic blade, pitch 6-10 for solid parts, standard parts, section bars and pipes, for low thickness
  • A multipurpose blade is provided. For specific uses, it is recommended replacing it with a more suitable blade.
  • The “dry” or “cooled” cut is in accordance with the type of material on the basis of its dimensions and its section.
  • Emergency mushroom-head button
  • Manual accelerator
  • Honda GX31 4-stroke engine
  • Coolant pump
  • Headphones mandatory (according to DIN EN 352)
Technical data

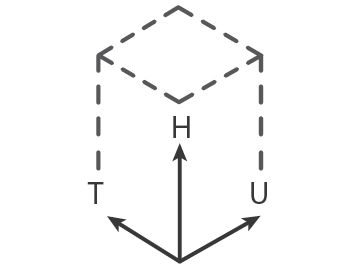

kW m/min. Cutting capacity Kg T U H Kg
mm mm
1,3 50 160 (max) 102 550 900 790 105

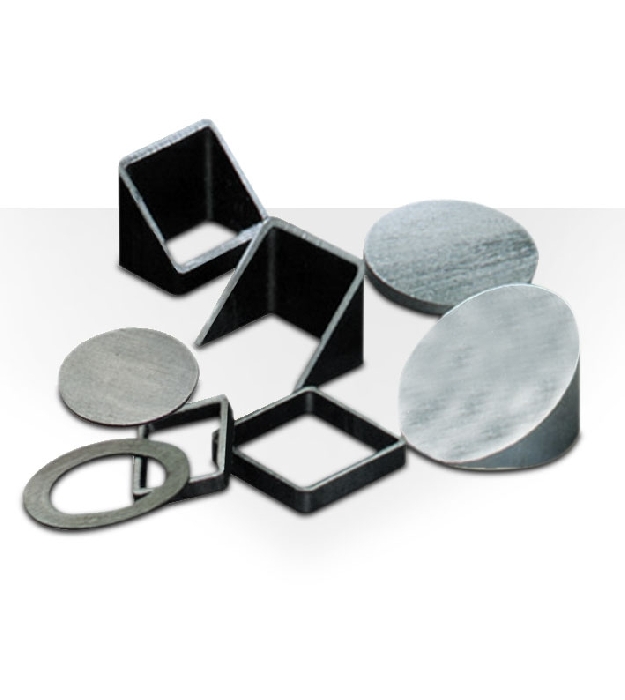

Cutting capacity

mm Cut mm mm mm
1900 x 20 x 0,9 160 160 160x150
45° 125 115 110x160
60° 80 50 100x50

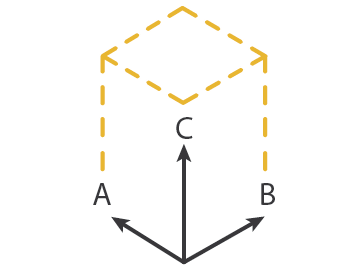

Overall dimensions
A B C
mm
940 525 1290
-->
