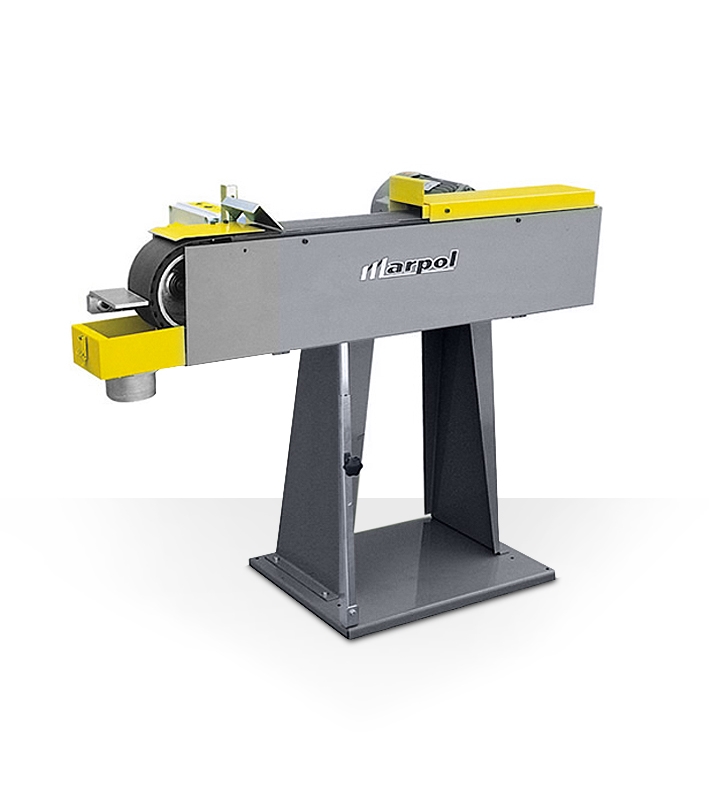

Horizontal telescopic belt sanders

Horizontal telescopic belt sanders
mod. 705/707

Telescopic sander on interchangeable cantilever rollers.


Technical features

  • Telescopic sander on interchangeable cantilever rollers.
  • Power supply: 400 Volt
  • Abrasive belt: 75 x 2500 (mod. 705) - 100 x 2500 mm (mod. 707)
  • Weight: 120 kg (mod. 705) - 130 kg (mod. 707)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW

Rpm

 m/s A B C D E Mod.
mm
705 400 - Hz 50 - TPH 1,27 1400 15 200 100 800 75 2500 6
1,27 1400/2800 15
1,7 30
707 400 - Hz 50 - TPH 2,25 1400 15 200 100 800 100 2500 6
2,25 1400/2800 15
3 30



Package dimensions
Mod. T U H Kg
mm
705 800 1200 1350 120
707 670 1400 1100 130
-->
