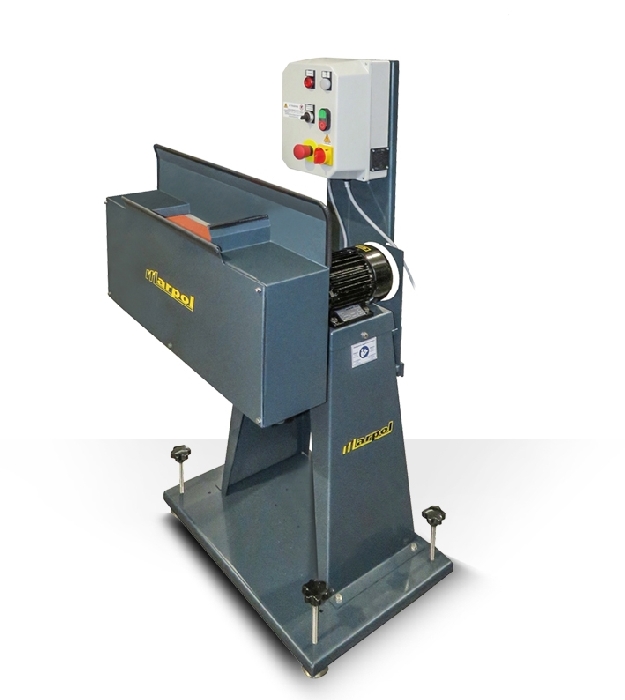

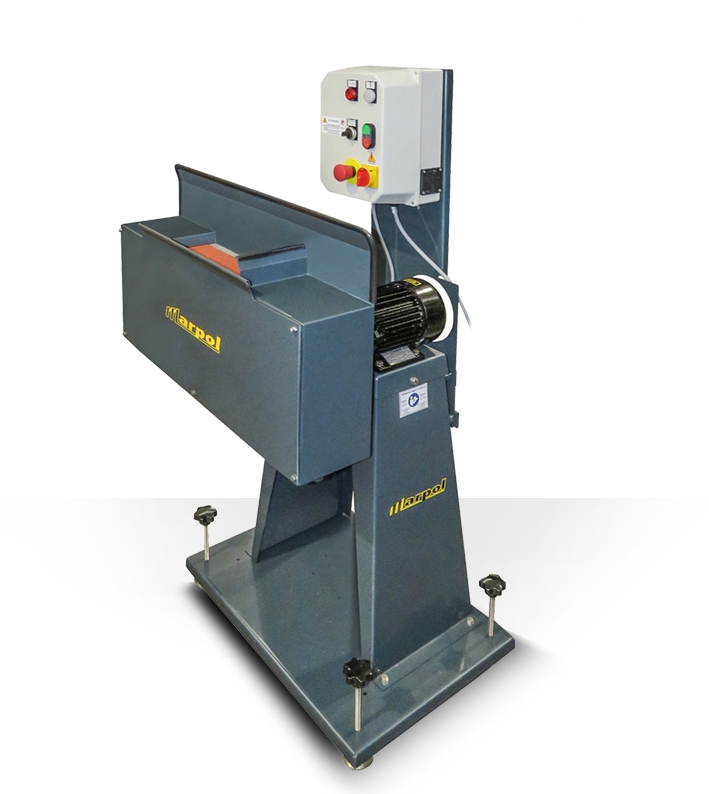

Horizontal belt grinder
mod. 310-INOX

Built for the eyewear sector, for "wet" processing on eyeglass frames, this sander is ideal for processing shaped parts in metal or plastic materials. The use of AISI 304 stainless steel with which it is built (base, machine body and containment tank) makes the sander suitable for "wet" processing in all industrial sectors where water or emulsion must be added to the process.


Technical features

  • Three-phase power supply: 400 V – 50 Hz
  • Motorisation: 0.8 kW - Electrical system with INVERTER for speed regulation 0-2800 RPM
  • Abrasive belt: 1500 x 80/120 mm
  • Empty weight: 85 kg
Dati tecnici
V

kW

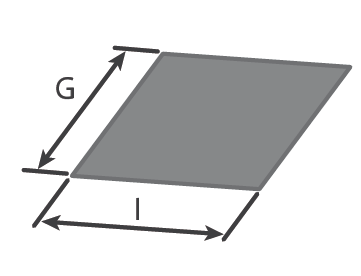

Rpm m/s A B C D E F G I Mod. T U H Kg
mm mm mm
V 400 - Hz 50 Tf 0,8 0-2800 30 80/120 1500 410 - 800 660 1300 85



-->
