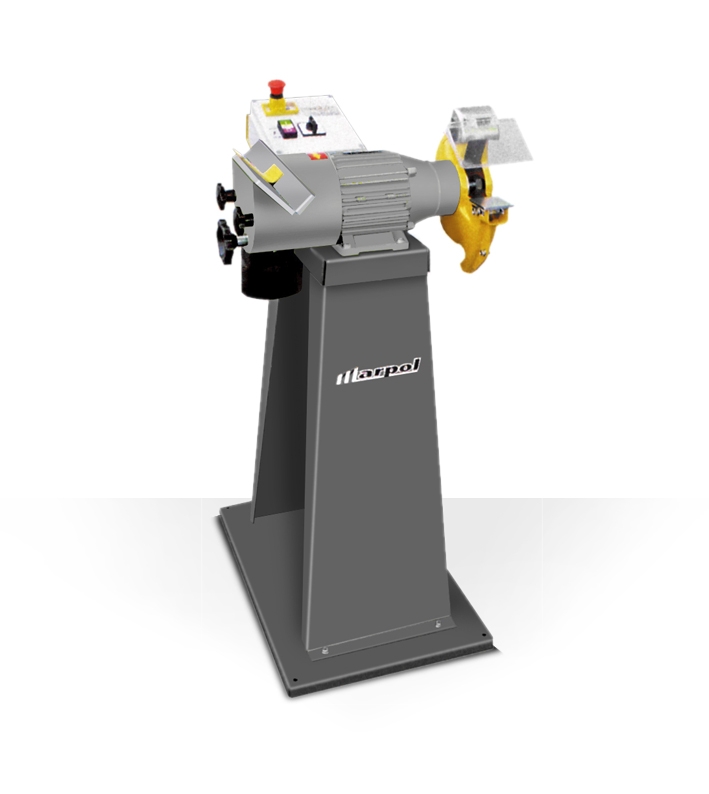

Combined bevelling machine with grinding wheel
mod. 218

Combined bevelling machine with grinding wheel for dry machining of 45° chamfering and grinding on any type of workable material.


Technical features

  • Combined bevelling machine with grinding wheel
  • Grinding wheel diameter mm 200 x 25 x 20 combined with a precision bevelling machine with 10 hard-metal inserts in a cutter-holder with diameter mm 80.
  • Power supply: 400 Volt
  • Two-speed motor
  • Weight: 38 Kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V 1 Speed 2 Speed mm kg T U H kg
kW Rpm m/s kW Rpm m/s mm
400 - Hz 50 - TPH 0,6 1400 15 0,6
0,8
1400
2800
15
30
200 x 25 x 20 38 500 660 1050 43
230 - Hz 50 - SPH 1,5 2800 30



Overall dimensions
A B C
mm
400 550 950



Cutter-holder dimensions
N O
mm
8 80
Workbench
SM P Q R
mm
7.5 40 80 350
-->
