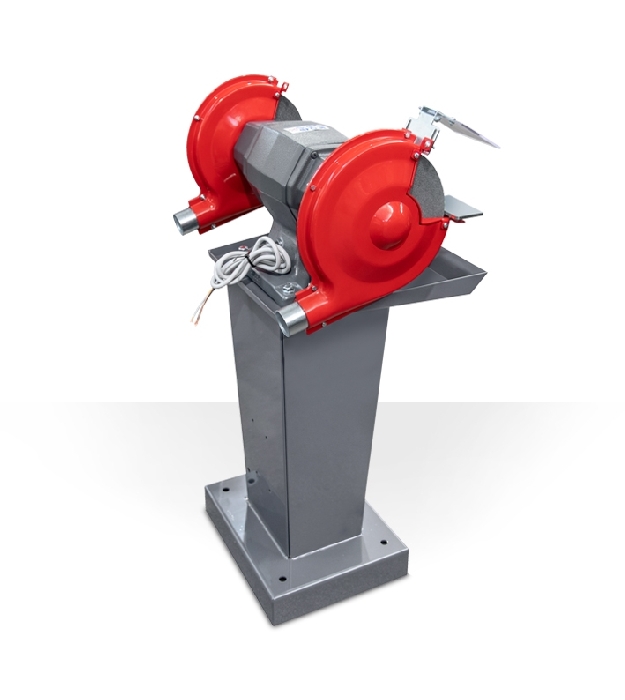

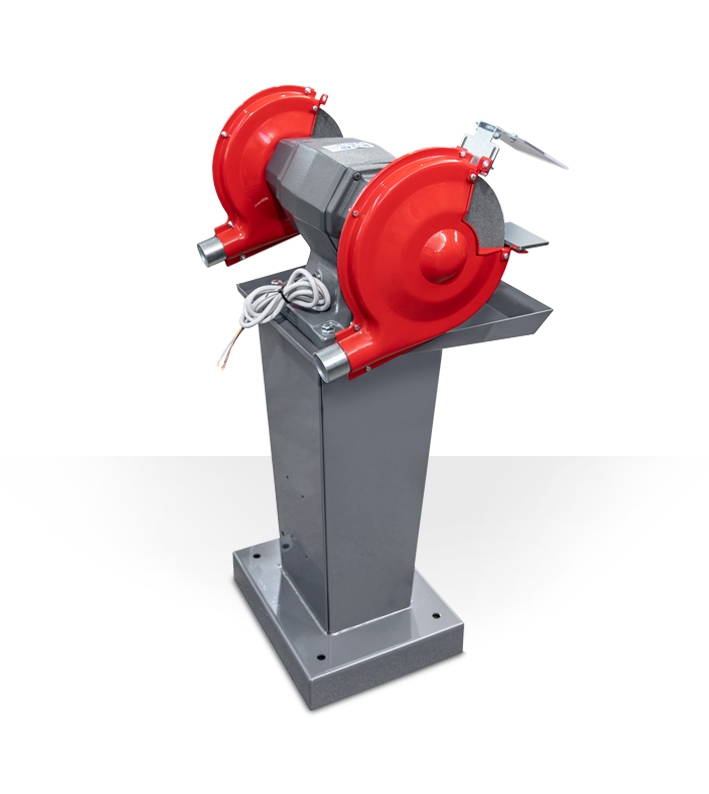

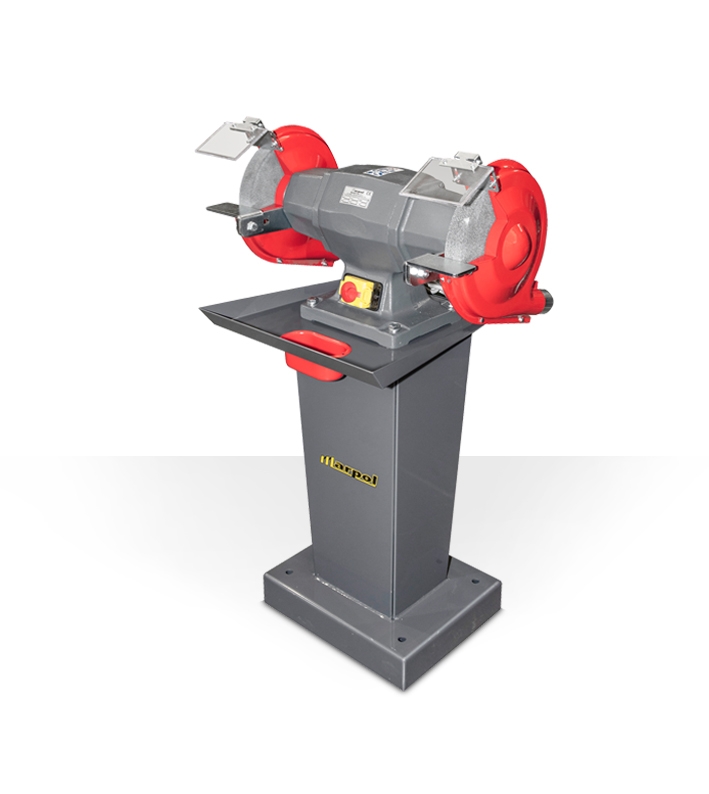

Double wheel grinders
mod. 119/120/126/127/128/129/130/132

Double wheel grinders for dry machining of metallic materials.
Flat or shaped pieces can be machined.


Technical features

  • Range of grinding machines supplied without grinding wheels.
  • Three-phase motor 400 Volt:
    Mod. 119: 0,56 kW - 2800 Rpm
    grinding wheels: Ø 150 x 20 x Ø 16 mm
    Mod. 126: 0,75 kW - 2800 Rpm
    grinding wheels: Ø 200 x 25 x Ø 20 mm
    Mod. 127: 1,12 kW - 1430 Rpm
    grinding wheels: Ø 250 x 30 x Ø 20 mm
    Mod. 128: 1,5 kW - 1430 Rpm
    grinding wheels: Ø 250 x 35 x Ø 25 mm
    Mod. 129: 1,87 kW - 1430 Rpm
    grinding wheels: Ø 300 x 35 x Ø 30 mm
    Mod. 130: 2,25 kW - 1430 Rpm
    grinding wheels: Ø 300 x 40 x Ø 30 mm
    Single-phase motor 230 Volt:
    Mod. 120: 0,37 kW - 2800 Rpm
    grinding wheels: Ø 150 x 20 x Ø 16 mm
    Mod. 132: 0,75 kW - 2800 Rpm
    grinding wheels: Ø 200 x 25 x Ø 20 mm

  • Possibility to fit exhauster 18 with B17/B18 bases.
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW

Rpm

mm Mod.
119 400 - Hz 50 - TPH 0,56 2800 Ø 150 x 20 x Ø 16 18
126 0,75 2800 Ø 200 x 25 x Ø 20
127 1,12 1400 Ø 250 x 30 x Ø 25
128 1,5 1400 Ø 250 x 30 x Ø 25
129 1,87 1400 Ø 300 x 35 x Ø 30
130 2,25 1400 Ø 300 x 40 x Ø 30
Single-phase
120 230 - Hz 50 - SPH 0,37 2800 Ø 150 x 20 x Ø 16 18
132 0,75 2800 Ø 200 x 25 x Ø 20



Package dimensions
Mod. T U H kg
mm
119 350 220 250 12
126 500 300 500 13
127 620 380 340 25
128 660 380 360 42
129 680 420 410 60
130 680 420 410 60
Single-phase
120 350 220 250 12
132 470 300 290 13



-->
