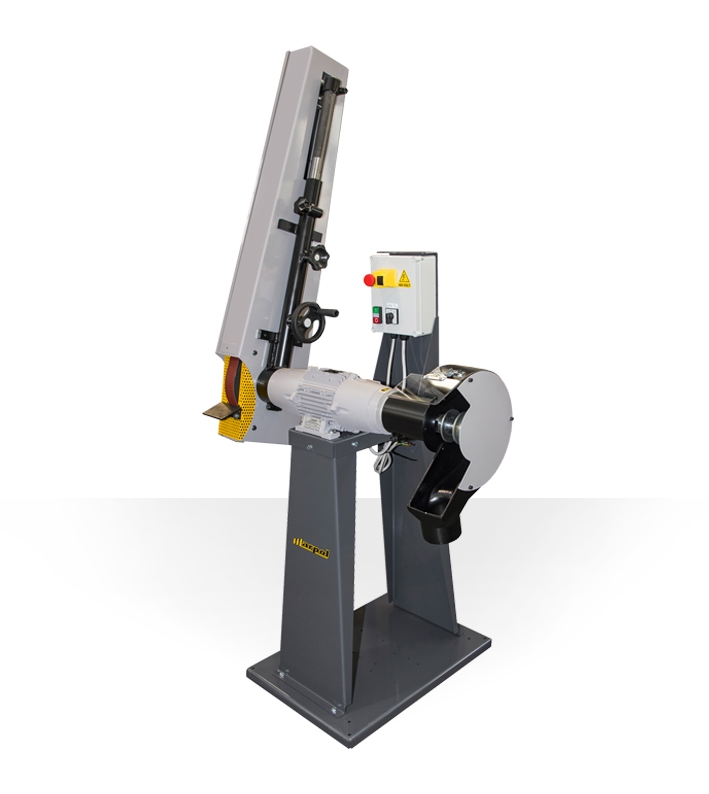

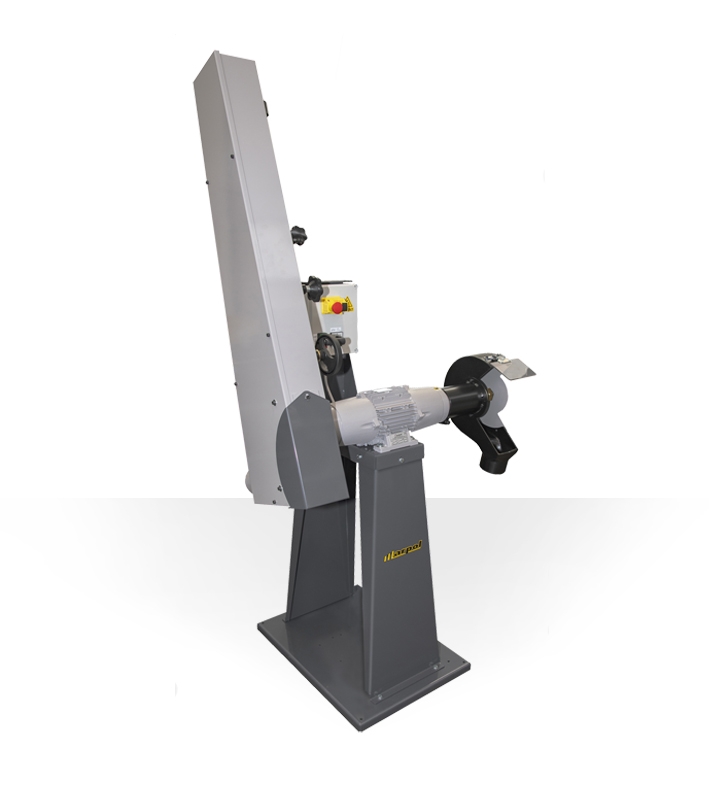

Swiveling telescopic belt sanders combined with brush polishing machines
mod. 563/566

Combined machine: telescopic sanders and brush polishing machines for dry machining of metal, wood and plastic materials.


Technical features

  • Telescopic sanders on rubber contact roller and cleaners.
  • Abrasive belt: 50 x 2500 mm
  • Brush: Ø250 x 25 x 60 mm
  • Weight: 107 kg (mod. 563) - 140 kg (mod. 566)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed A B C D E mm Mod.
kW Rpm m/s kW Rpm m/s
mm
563 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 250 x 25 x 60 6
1,7 2800 30
566 400 - Hz 50 - TPH 2,25 1400 15 2,25 1400 15 250 - - 50 2500 250 x 25 x 60 6
3 2800 30
Package dimensions
Mod. T U H Kg
mm
563 940 700 2100 107
566 970 700 2100 140
-->
