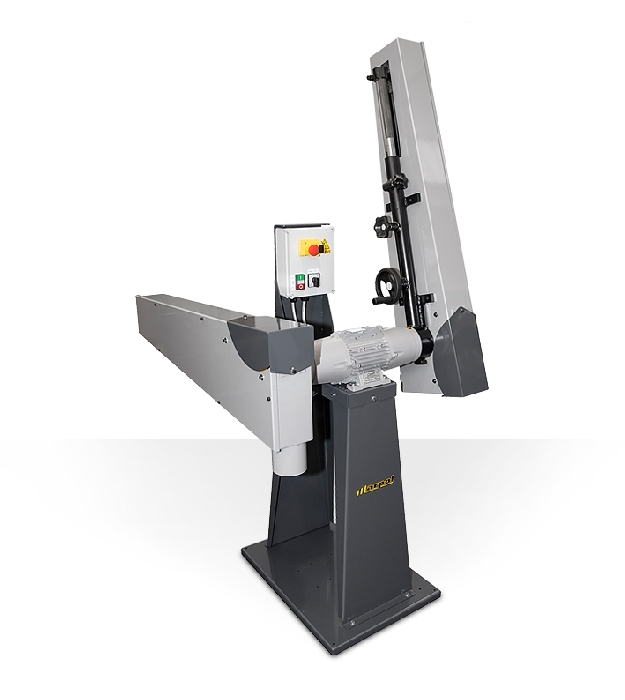

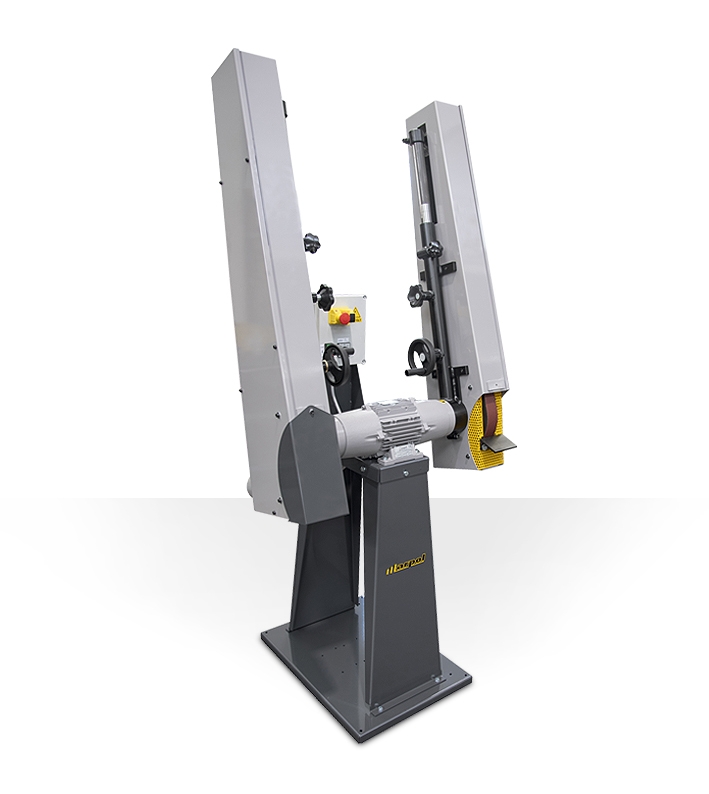

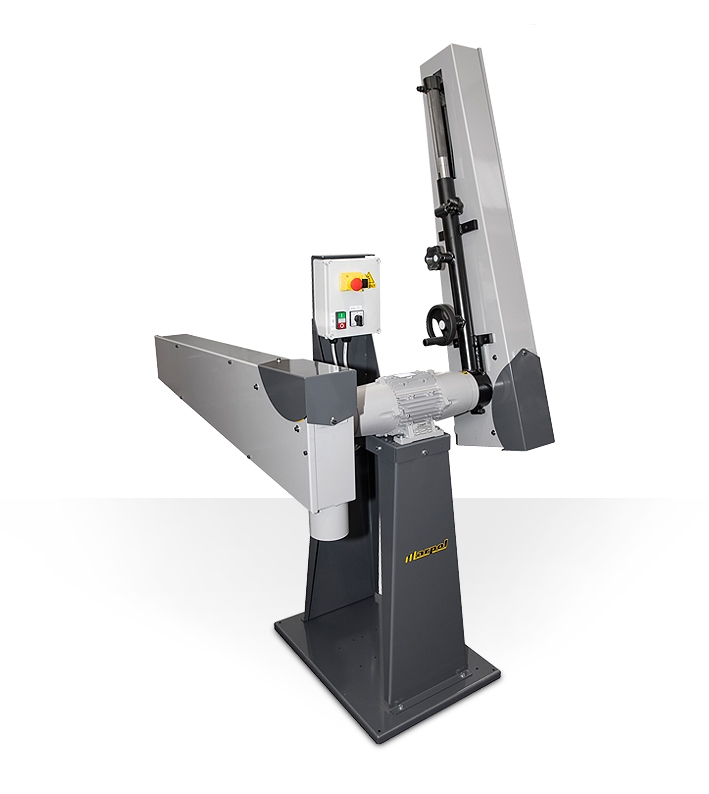

Double telescopic boom belt sanders
mod. 553/556

Double telescopic boom grinders on rubber contact rollers for dry machining of metal, wood and plastic materials.


Technical features

  • Sander with two telescopic booms on rubber contact rollers.
  • Power supply: 400 Volt
  • Belt: 50 x 2500 mm
  • Weight: 140 kg (mod. 553) - 150 kg (mod. 556)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed A B C D E Mod.
kW Rpm m/s kW Rpm m/s
mm
553 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 6
1,7 2800 30
556 400 - Hz 50 - TPH 2,25 1400 15 2,25 1400 15 250 - - 50 2500 6
3 2800 30



Package dimensions
Mod. T U H Kg
mm
553 840 700 2100 100
556 870 700 2100 110
-->
