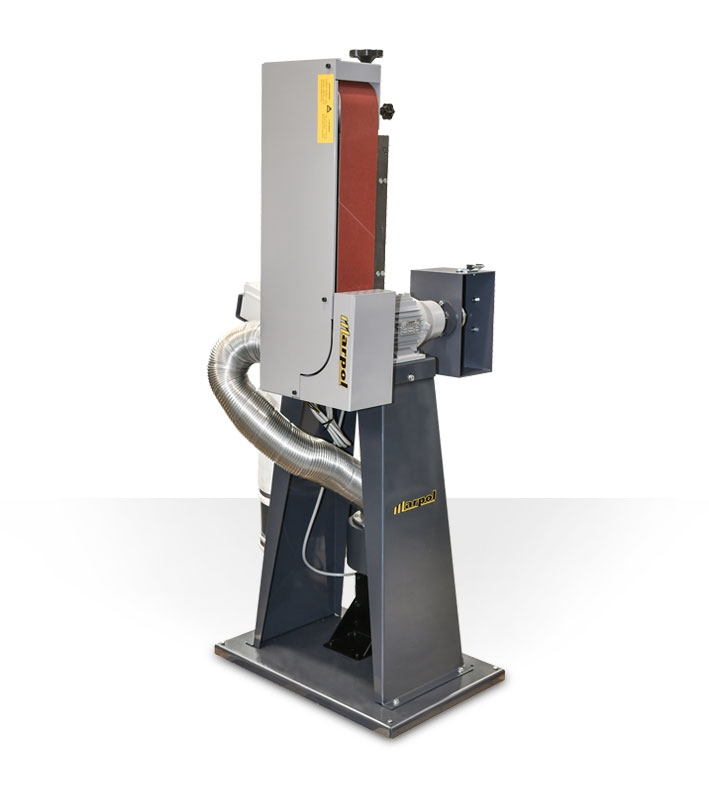

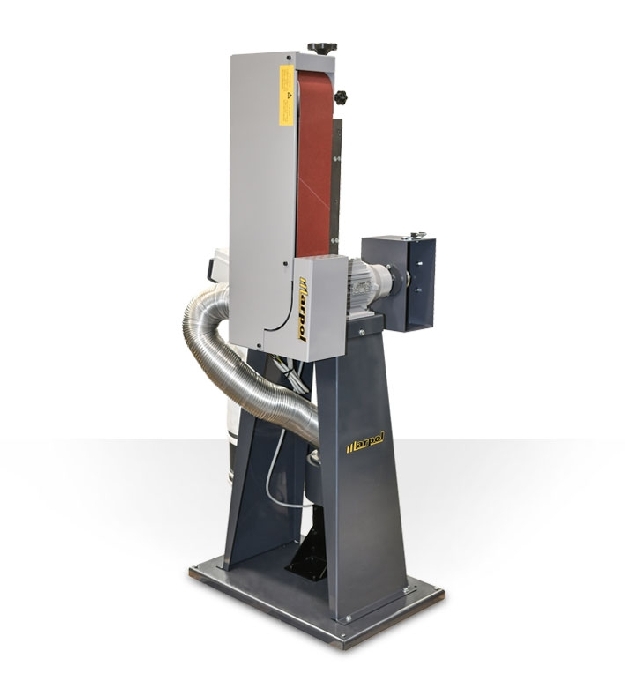

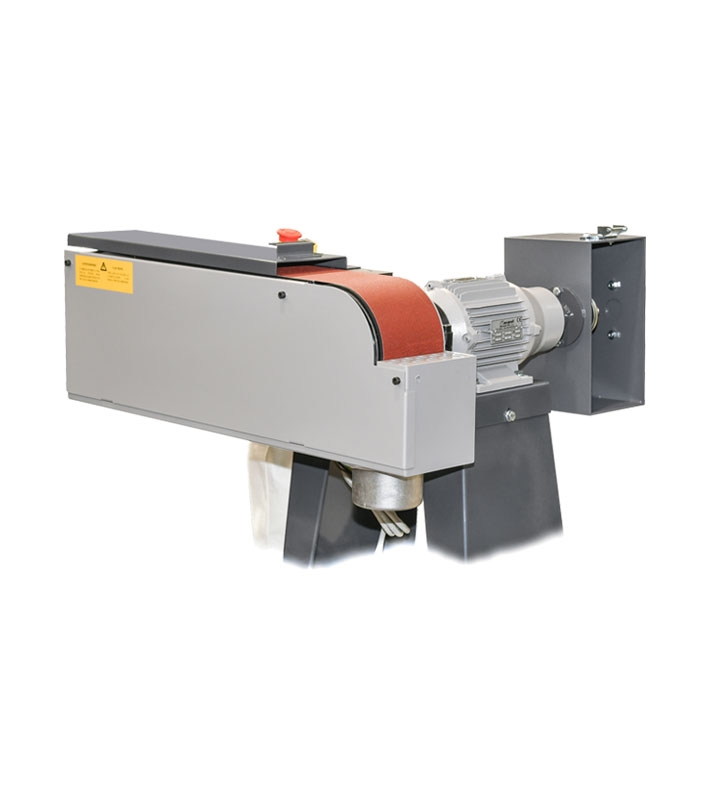

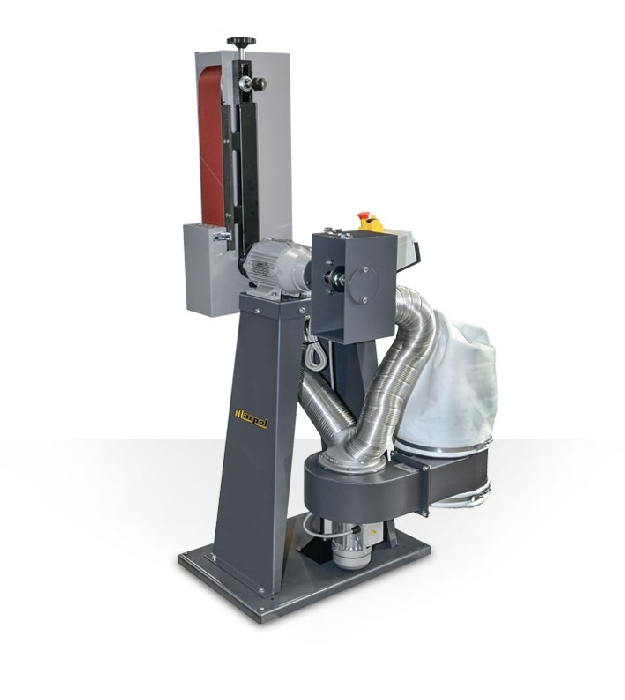

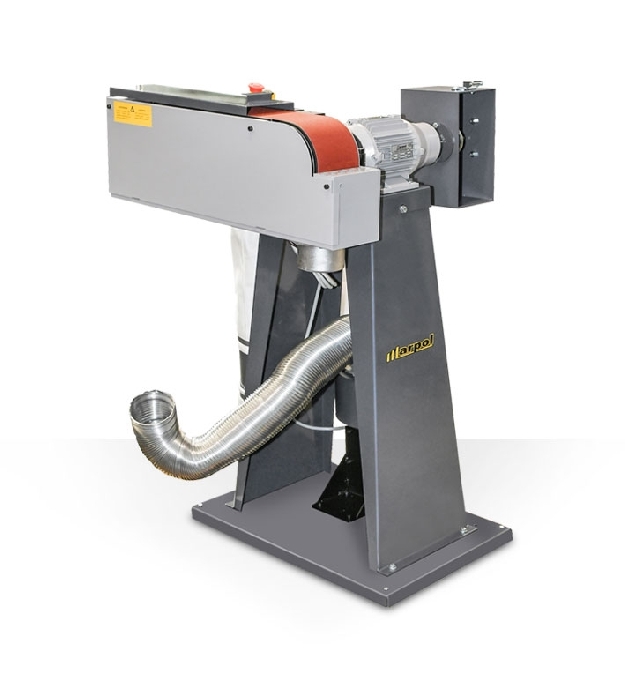

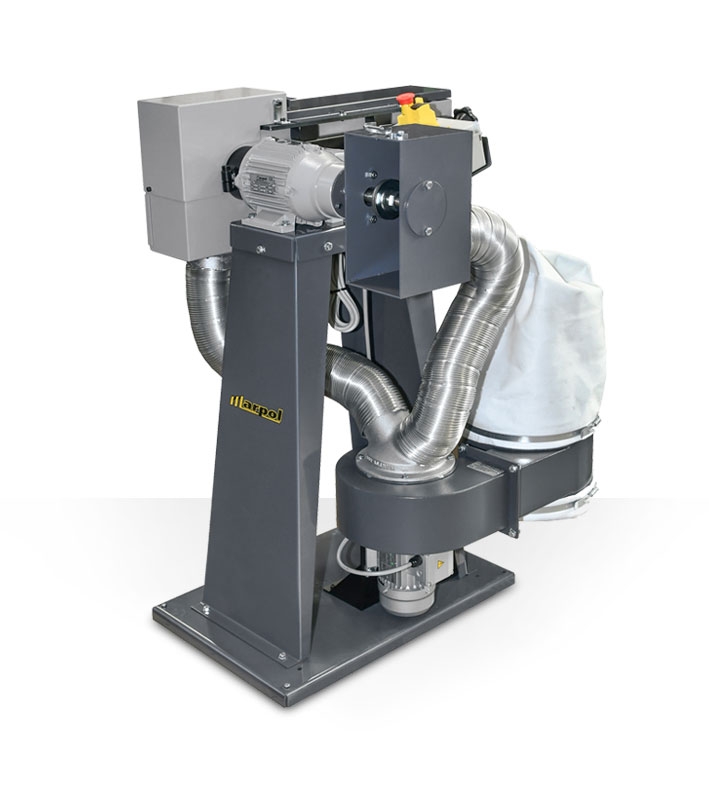

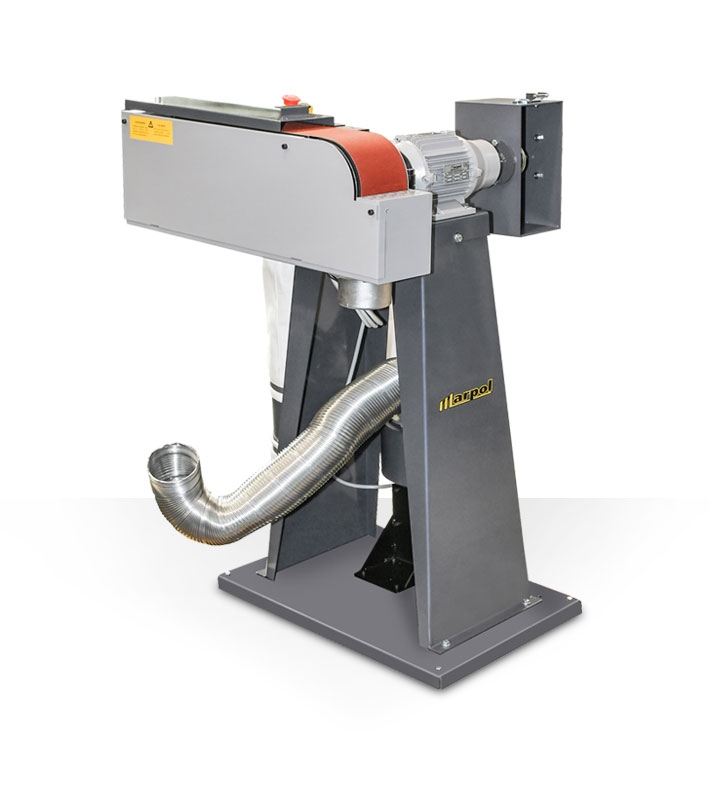

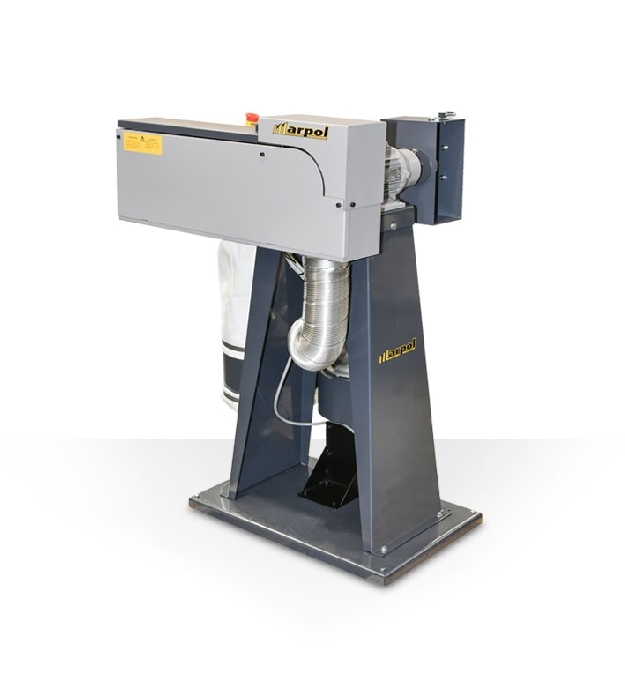

Swiveling belt sander combined with brush polishing machine
mod. 316

Combined machine: swiveling belt sander combined with brush polishing machine for dry machining of various materials.


Technical features

  • Swivel sander and cleaner
  • Power supply single phase and three phase: 230 / 400 Volt
  • Two-speed motor
  • Abrasive belt: 120 x 1500 mm
  • Brush: Ø200 x 20 x 40 mm
  • Weight: 63 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data
V kW Rpm m/s A B C D E mm Mod.
mm
400 - Hz 50 - TPH 0,6 1400 15 180 160 410 120 1500 Ø200x20x40 4
0,8 2800 30
230 - Hz 50 - SPH 1,5 2800 30
400 - Hz 50 - TPH 0,6 1400/2800 15
0,8 30
Package dimensions
T U H Kg
mm
900 650 1100 63
-->
