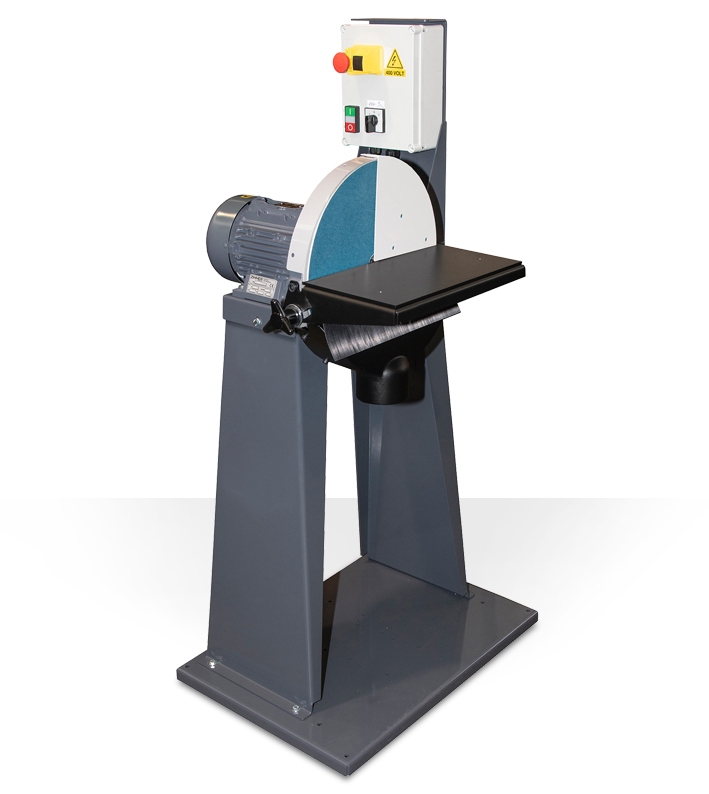

Disc sander
mod. 405/406/410

Disc sanders designed for dry machining of metal, wood and plastic materials. Flat or shaped pieces can be machined.


Technical features

  • Swivel circular-disc sanders with workbench.
  • Power supply: 230/400 Volt
  • Sand discs: 350/400 mm
  • Weight: 56 kg (mod. 405) - 83 kg (mod. 406) - 83 kg (mod. 410)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V

1 Speed

2 Speed Mod. T U H Kg
kW Rpm m/s kW Rpm m/s mm
405 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 4 600 650 1000 56
1,7 2800 30
406 2,25 1400 15 - - - 6 600 500 1100 83
410 0,6 1400 15 0,6 1400 15 4 550 400 1000 83
0,8 2800 30
1,5 2800 30 - - -
Workbench
Mod. F G I
mm
405 350 200 400
406 500 300 550
410 350 200 400
-->
