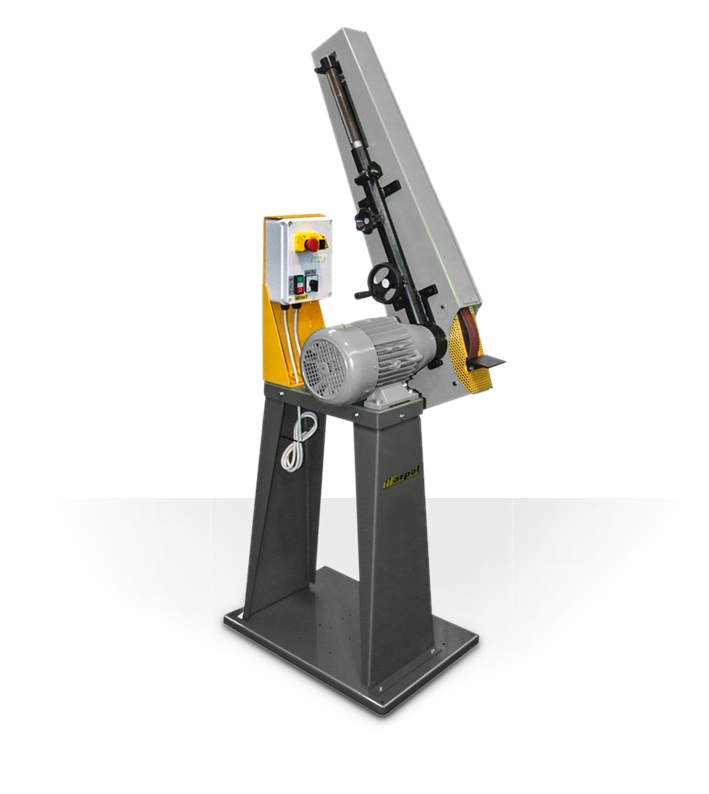

Single telescopic belt swiveling sanders
mod. 503/506

Telescopic arm grinders on rubber contact roller designed for dry machining of metal, wood and plastic materials.


Technical features

  • Sander with telescopic boom on rubber contact roller.
  • Power supply: 400 Volt
  • Abrasive belt: 50 x 2500 mm
  • Weight: 100 kg (mod. 503) - 110 kg (mod. 506)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed A B C D E Mod.
kW Rpm m/s kW Rpm m/s
mm
503 400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 6
1,7 2800 30
506 2,25 1400 15 2,25 1400 15 250 - - 50 2500 6
3 2800 30



Package dimensions
Mod. T U H Kg
mm
503 1200 800 1550 100
506 630 700 2100 110
-->
