Swiveling belt sanders combined with grinding wheels
mod. 210/213

Combined machine: swiveling sander and grinding wheel for dry machining of metal, wood and plastic materials.


Technical features

  • A series of new machines produced with the typical reliability, versatility and safety features derived from the long-standing experience and constant technological research of MARPOL F.R. Srl
  • The new production range is identified by new colours.
  • Headphones mandatory (according to DIN EN 352)

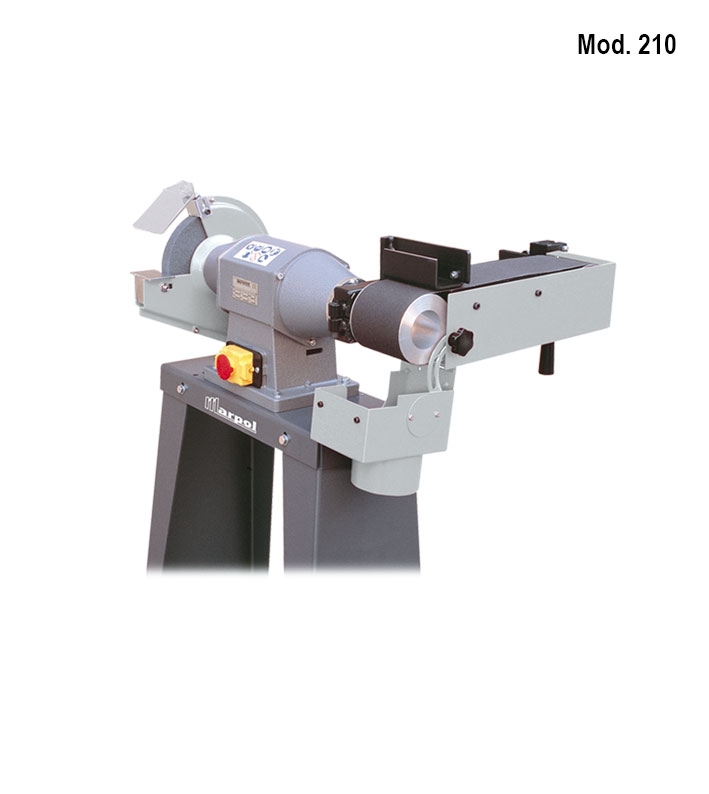

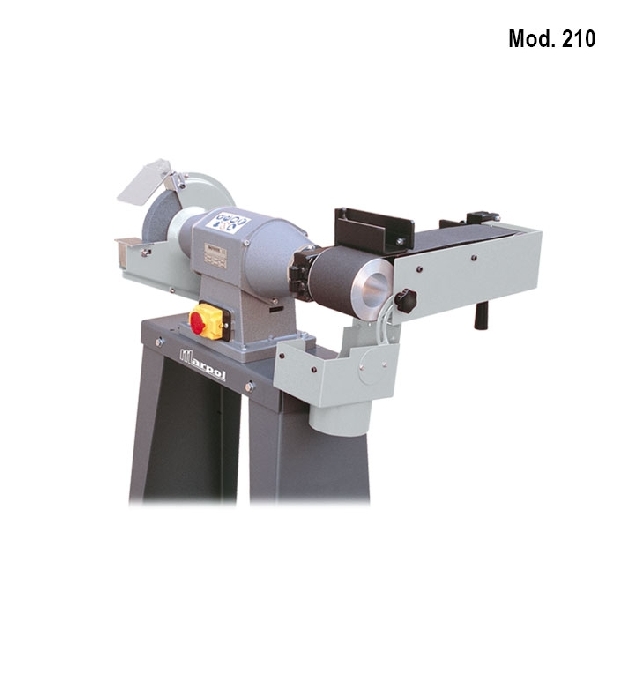

Mod. 210

  • Power supply: 230/400 Volt
  • Abrasive belt: 100 x 1000 mm
  • Wheel dimensions: 200 x 25 x 20 mm
  • Weight: 50 Kg

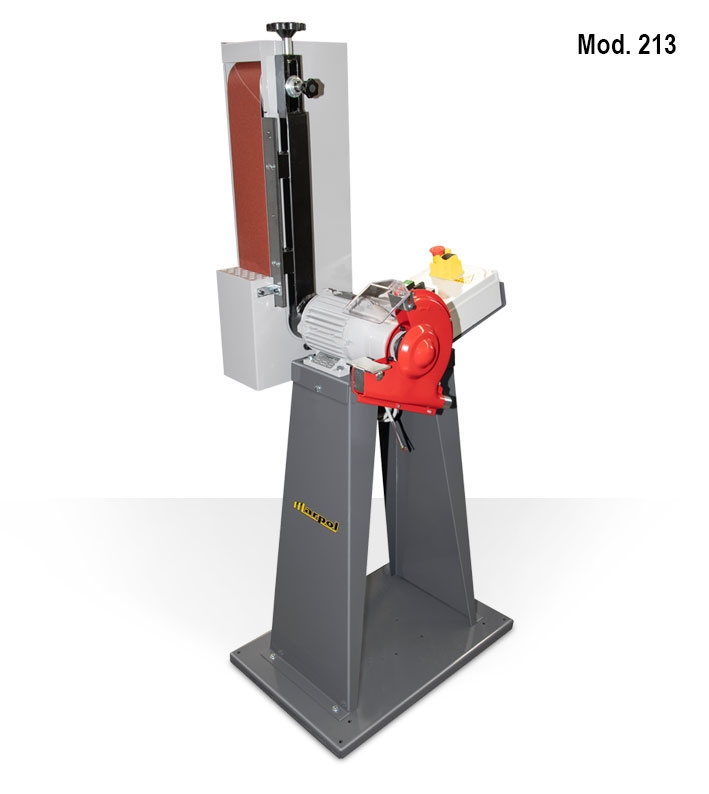

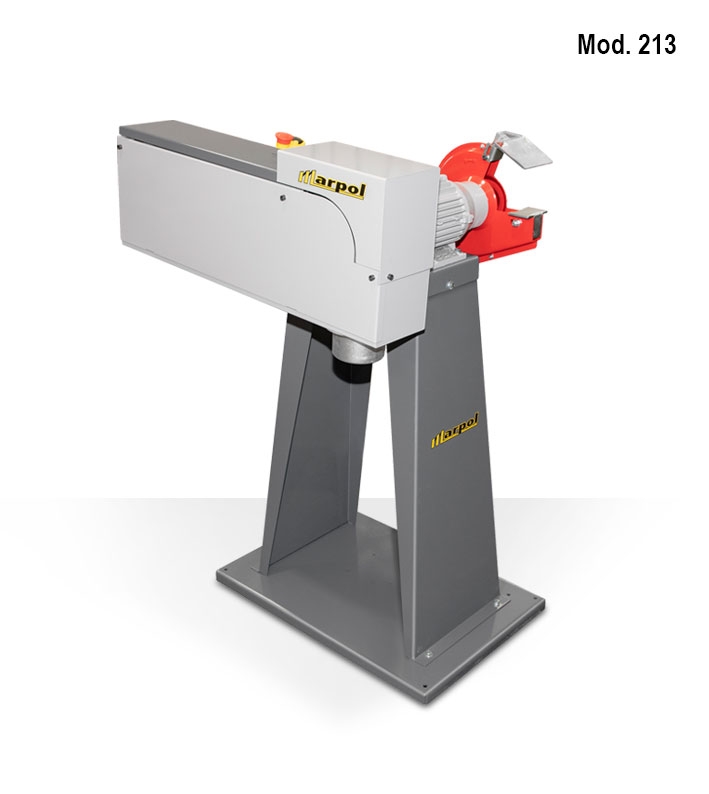

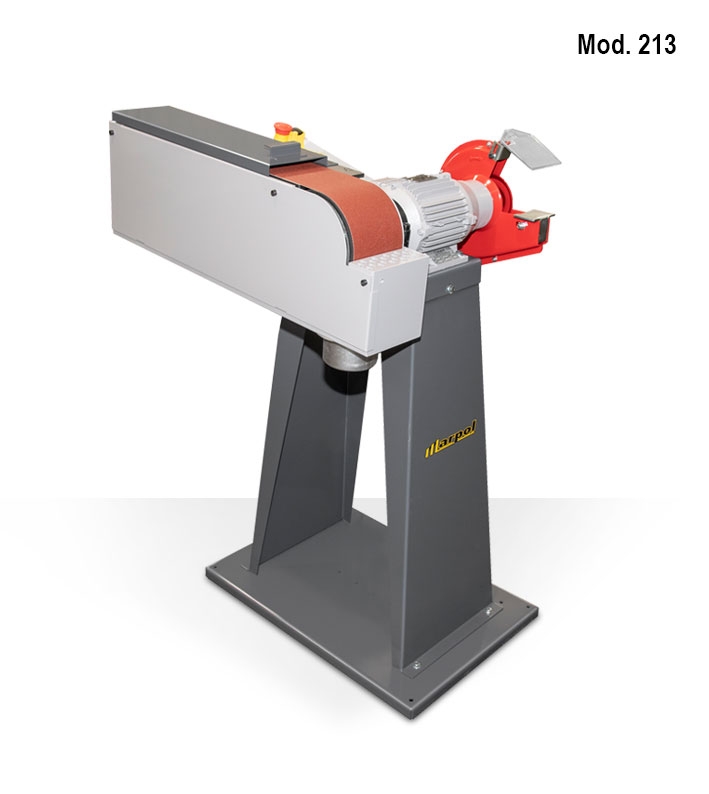

Mod. 213

  • Power supply: 230/400 Volt
  • Abrasive belt: 120 x 1500 mm
  • Wheel dimensions: 200 x 25 x 20 mm
  • Weight: 52 Kg
Technical data

Mod. V kW Rpm m/s A B C D E mm Mod. Kg
mm
210 230 - Hz 50 - SPH

1,1

2800 28 - 100 - - 1000 200x25x20 4 50
400 - Hz 50 - TPH 1,3
213 400 - Hz 50 - TPH 0,6 1400 14 - 120 - - 1500

200x25x20

4 52
230 - Hz 50 - SPH 1,5 2800 28
400 - Hz 50 - TPH 0,6 1400/2800 14
0,8 28
Overall dimensions
Mod. A B C
mm
210 600 350 1500
213 800 400 1000
Package dimensions
Mod. T U H Kg
mm
210 800 500 1600 60
213 900 500 1100 62
-->
