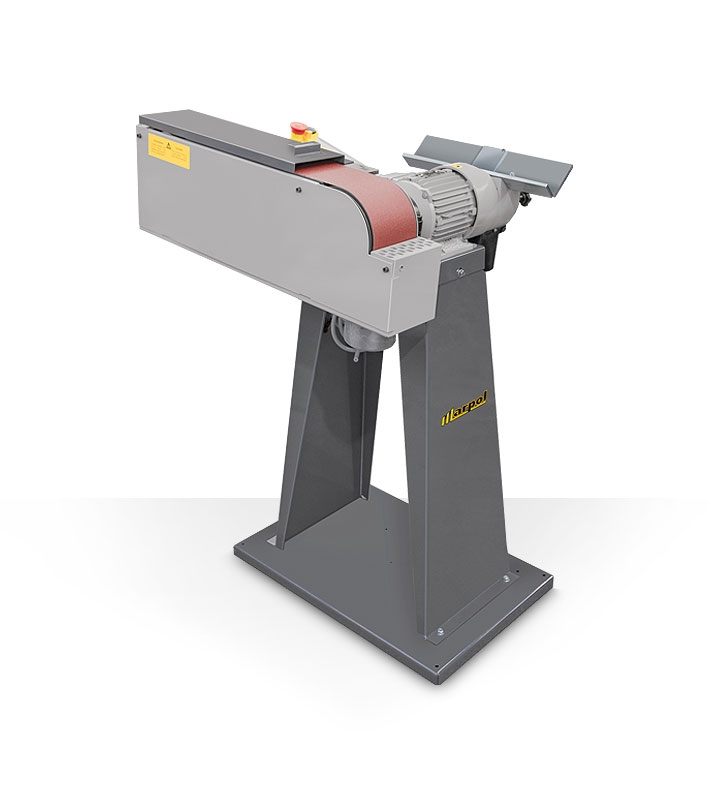

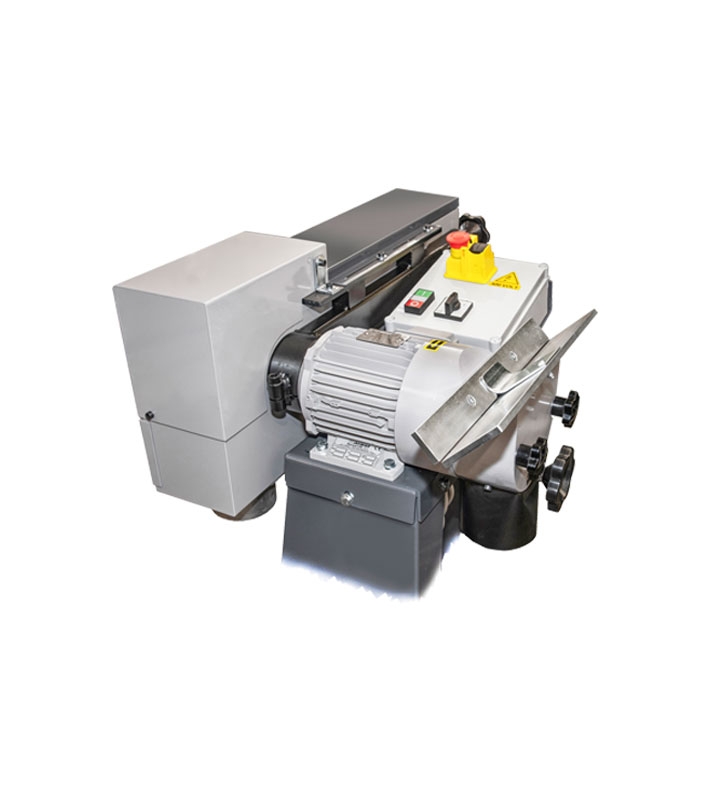

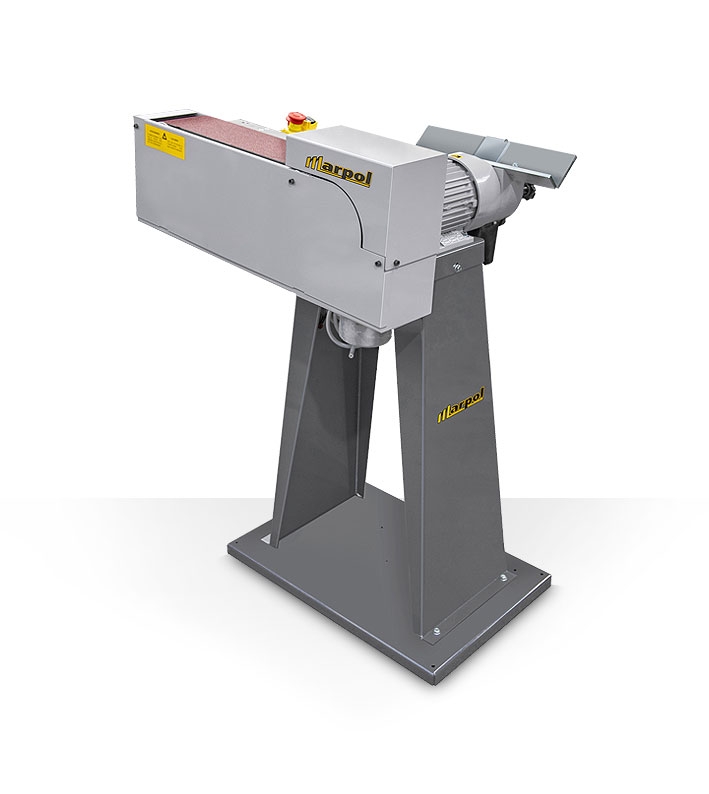

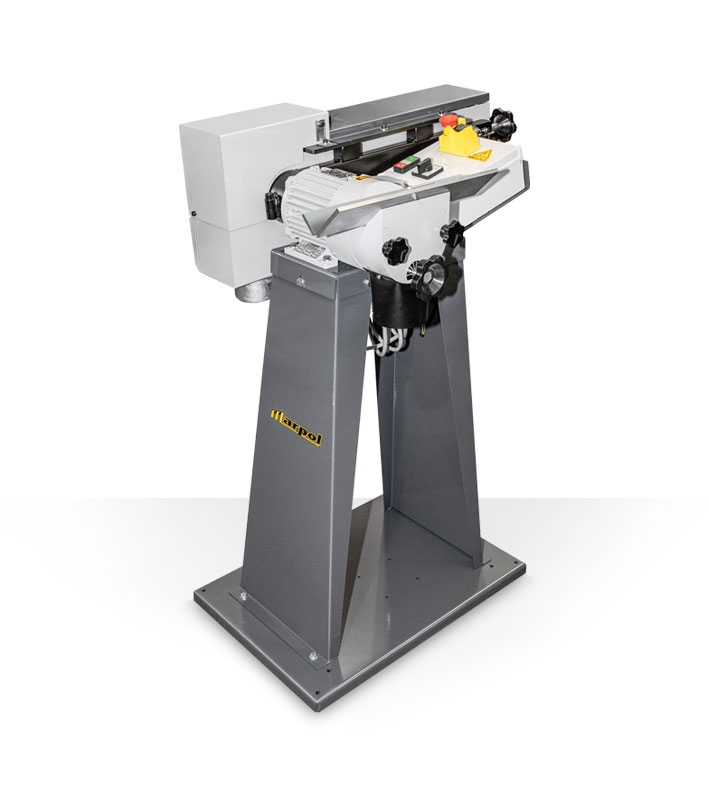

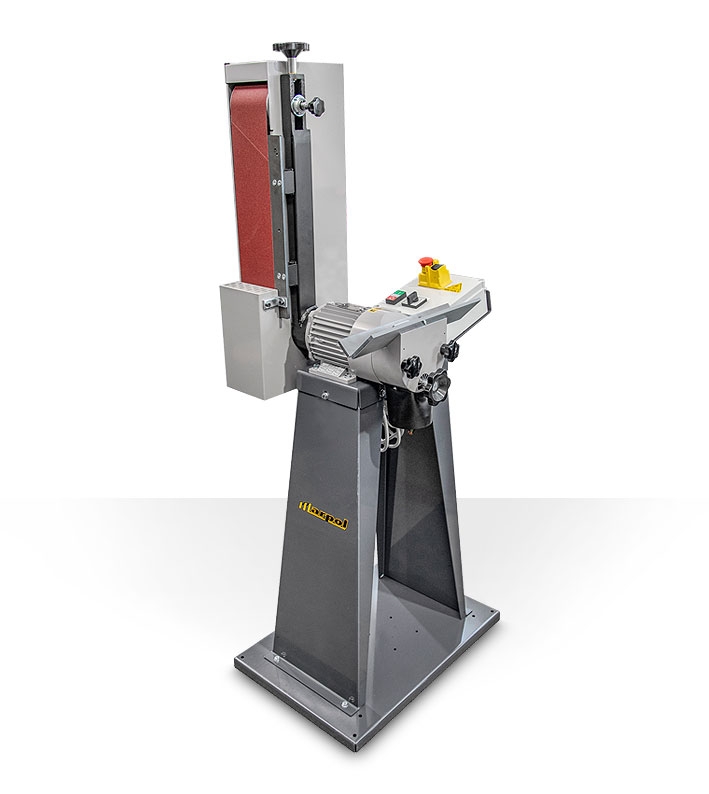

Swiveling belt sander combined with bevelling machine
mod. 318/383

Swiveling belt sander combined with bevelling machine for dry machining of metal, wood and plastic materials.


Technical features

  • Combined bevelling machine with sander.
  • Combined with a precision bevelling machine with 8 hard-metal inserts in a cutter-holder with diameter mm 80.
  • Power supply: 230/400 Volt
  • Two-speed motor
  • Abrasive belt: 120 x 1500 (mod. 318) - 150 x 1750 mm (mod. 383)
  • Weight: 65 Kg (mod. 318) - 94 Kg (mod. 383)
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW

Rpm

m/s A B C D E N O Mod.
mm mm
318 400 - Hz 50 - TPH 0,6 1400 15 180 160 410 120 1500 8 80 4
230 - Hz 50 - SPH 1,5 2800 30
400 - Hz 50 - TPH 0,6 1400/2800 15
0,8 30
383 400 - Hz 50 - TPH 1,27 1400 15 200 200 500 150 1750 8 80 6
400 - Hz 50 - TPH 1,27 1400/2800 15
1,7 30
Package dimensions
Mod. T U H Kg
mm
318 900 550 1100 65
383 1000 650 1150 94

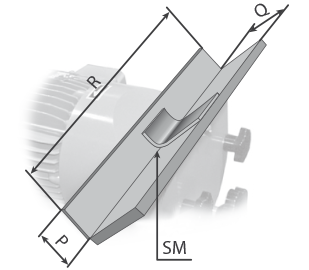

Workbench
Mod. SM P Q R
mm
318 7.5 40 80 350
383 10 40 80 400
-->
