End forming machine

End forming machine
mod. 2150

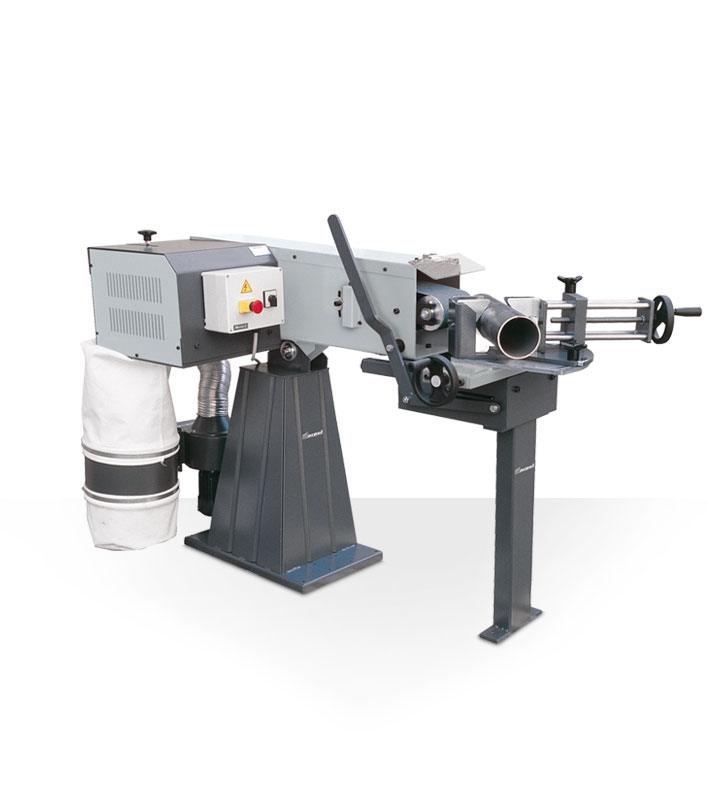

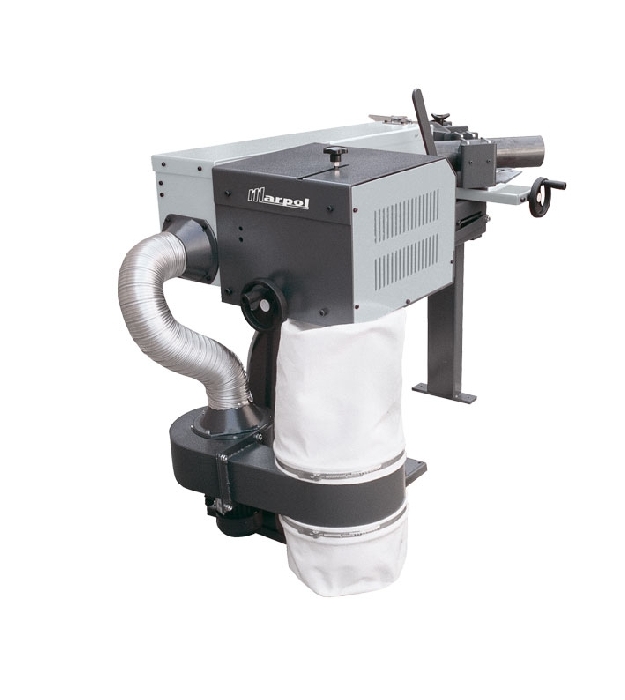

End forming machine for the shaped beveling of metallic pipes (before welding), by rotation of a grinding tape.


Technical features

  • Pipe bevelling machine with sand belt.
  • Motor: 400 V, 1 or 2 speed
  • Abrasive belt dimensions: 150 x 2000 mm AZ 60 Zirconium
  • Exhauster: Mod. 4 / 6 / 7 optional
  • Weight: 160 Kg
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW Rpm m/s mm   Mod.
2150/1/3 400 - Hz 50 - TPH 3

2800

 33

150 x 2000
AZ 60 Zirconium

 Ø 25 ÷ 150

4
2150/2/3 400 - Hz 50 - TPH

2,6

1400

16,5
3,37 2800 33
2150/1/4 400 - Hz 50 - TPH 4 2800 33
2150/2/4 400 - Hz 50 - TPH

3,4

1400

16,5
4,5 2800 33
Overall dimensions
A B C Kg
mm
1440 800 1091 160



-->
