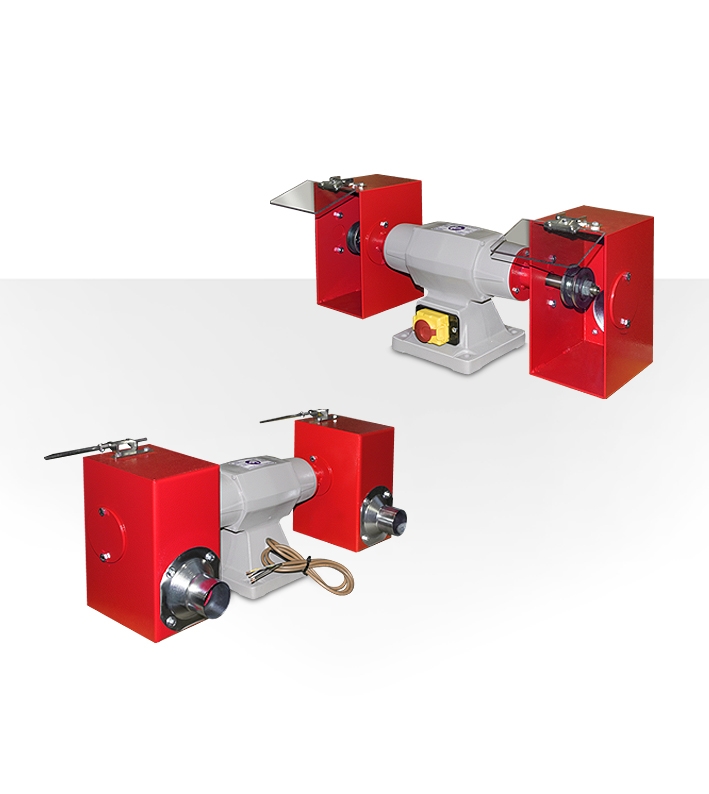

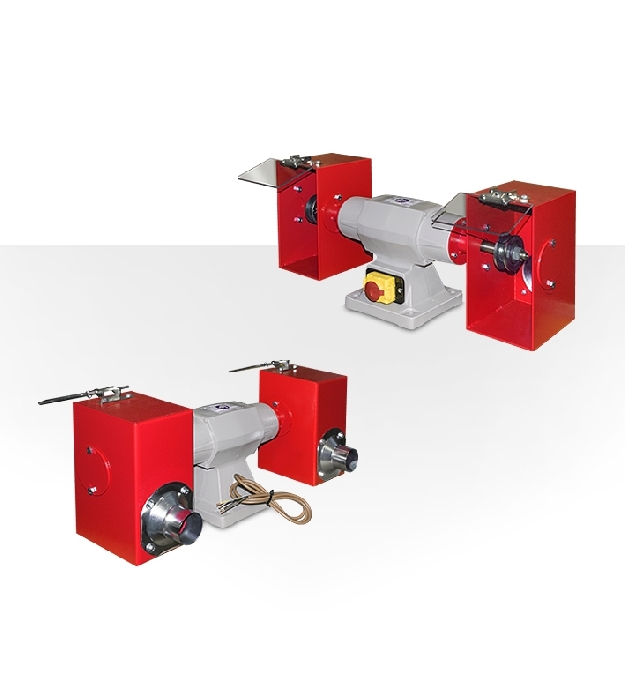

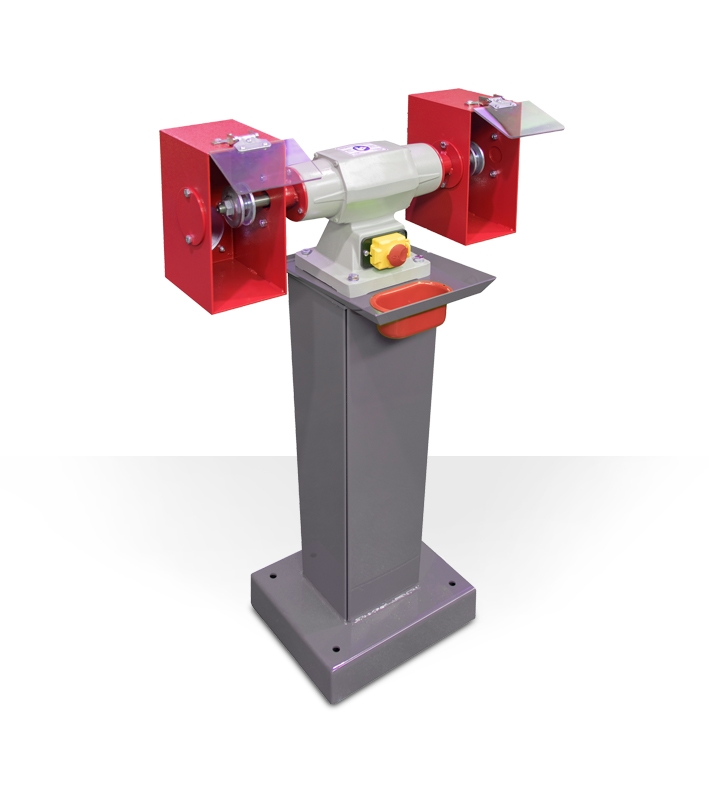

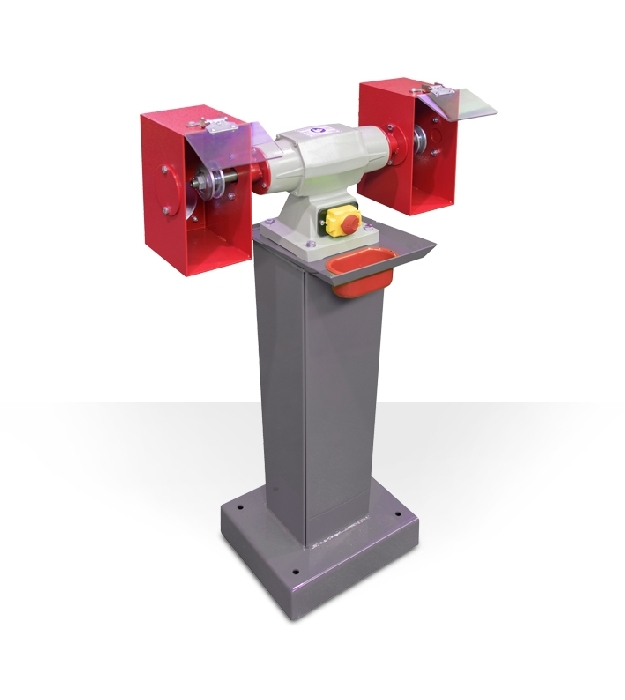

Double brush polishing grinders
mod. 123/124/142/143/144/145/146/148

Double brush polishing grinders for dry processing of metal materials (with the adoption of appropriate brushes).


Caratteristiche tecniche

  • Range of cleaners without brush.
  • Three-phase motor 400 Volt:
    Mod. 123: 0.56 Kw - 2800 Rpm
    Brush size: Ø150 x Ø 16 mm
    Mod. 142: 0.75 Kw - 2800 Rpm
    Brush size: Ø 200 x Ø 20 mm
    Mod. 143: 1.12 Kw - 1400 Rpm
    Brush size: Ø 250 x Ø 20 mm
    Mod. 144: 1.5 Kw - 1400 Rpm
    Brush size: Ø 250 x Ø25 mm
    Mod. 145: 1.87 Kw - 1400 Rpm
    Brush size: Ø 300 x Ø 30 mm
    Mod. 146: 2.25 Kw - 1400 Rpm
    Brush size: Ø 300 x Ø 30 mm
    Single-phase motor 230 Volt:
    Mod. 124: 0.37 Kw - 2800 Rpm
    Brush size: Ø 150 x Ø 16 mm
    Mod. 148: 0.75 Kw - 2800 Rpm
    Brush size: Ø 200 x Ø 20 mm

  • Brush size: 150/200/250/300 mm with hole diameter 16/20/25/30 mm
  • Possibility to fit exhauster 18 with B17/B18 bases.
  • Headphones mandatory (according to DIN EN 352)



Technical data

Mod. V kW

Rpm

mm Mod.
123 400 - Hz 50 - TPH 0,56 2800 Ø 150 x Ø 16 18
142 0,75 2800 Ø 200 x Ø 20
143 1,12 2800 Ø 250 x Ø 25
144 1,5 2800 Ø 250 x Ø 25
145 1,87 2800 Ø 300 x Ø 30
146 2,25 2800 Ø 300 x Ø 30
Single-phase
124 230 - Hz 50 - SPH 0,37 2800 Ø 150 x Ø 16 18
148 0,75 2800 Ø 200 x Ø 20



Package dimensions
Mod. T U H kg
mm
123 600 220 250 10
142 650 250 300 20
143 920 300 350 23
144 980 320 370 43
145 1100 360 410 62
146 1100 360 410 62
124 600 220 250 10
148 660 250 300 14



-->
