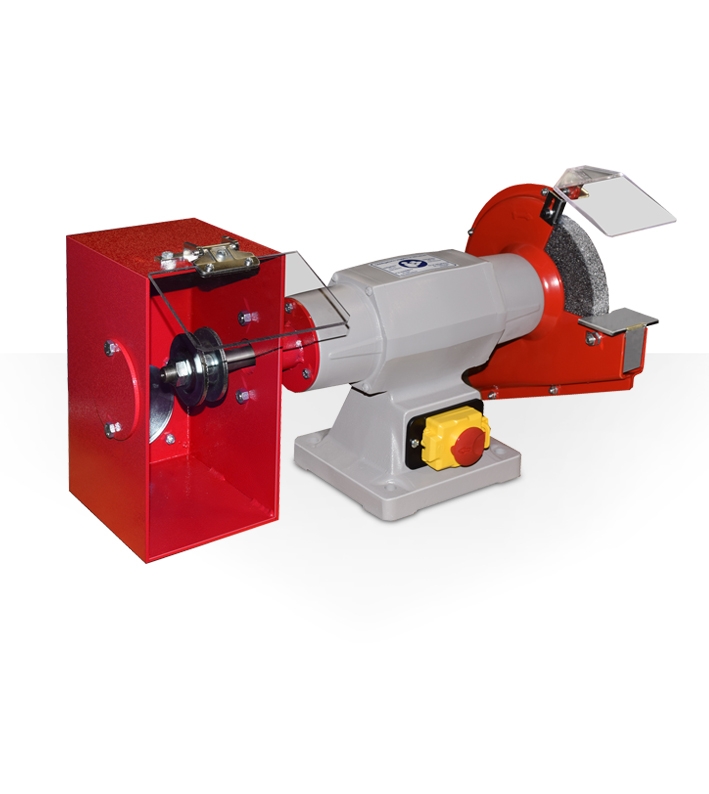

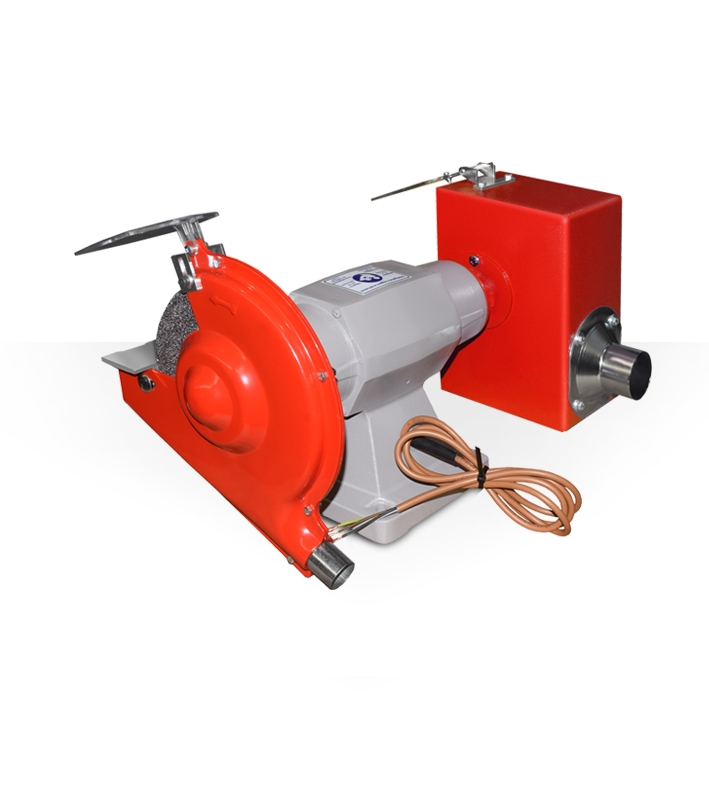

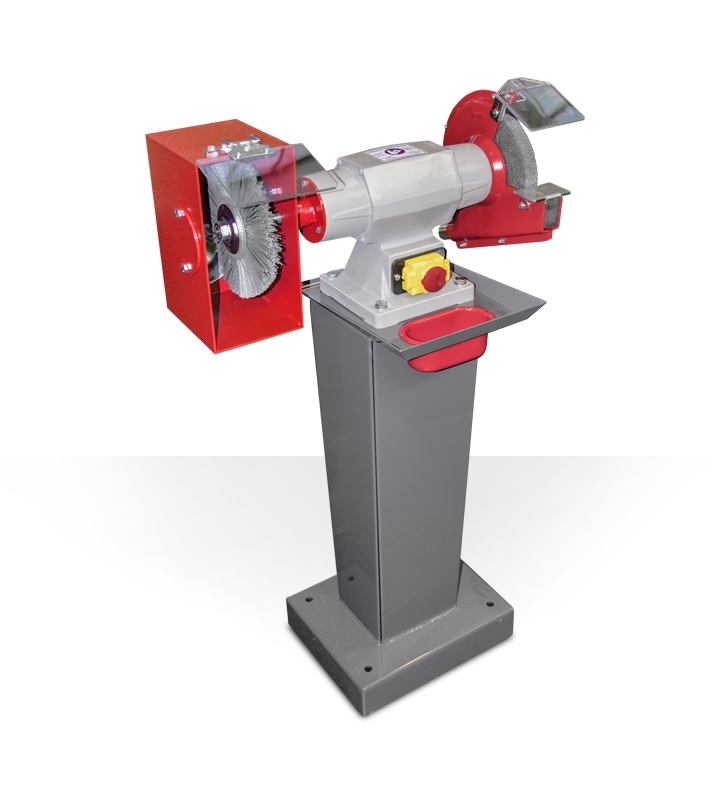

Grinders machines with wheels combined with brush polishing machines
mod. 121/122/134/135/136/137/138/140

Grinders machines with wheels combined with brush polishing machines for dry machining of metallic materials.


Technical features

  • Range of combined grinding machines without wheel and brush.
  • Three-phase motor 400 Volt:
    Mod. 121: 0.56 Kw - 2800 Rpm
    grinding wheels: Ø 150 x 20 x Ø 16 mm
    Mod. 134: 0.75 Kw - 2800 Rpm
    grinding wheels: Ø 200 x 25 x Ø 20 mm
    Mod. 135: 1.12 Kw - 1400 Rpm
    grinding wheels: Ø 250 x 30 x Ø 20 mm
    Mod. 136: 1.5 Kw - 1400 Rpm
    grinding wheels: Ø 250 x 35 x Ø 25 mm
    Mod. 137: 1.87 Kw - 1400 Rpm
    grinding wheels: Ø 300 x 35 x Ø 30 mm
    Mod. 138: 2.25 Kw - 1400 Rpm
    grinding wheels: Ø 300 x 40 x Ø 30 mm
    Single-phase motor 230 Volt:
    Mod. 122: 0.37 Kw - 2800 Rpm
    grinding wheels: Ø 150 x 20 x Ø 16 mm
    Mod. 140: 0.75 - 2800 Rpm
    grinding wheels: Ø 200 x 25 x Ø 20 mm

  • Possibility to fit exhauster 18 with B17/B18 bases.
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V kW

Rpm

mm mm Mod.
121 400 - Hz 50 - TPH     0,56 2800 Ø 150 x 20 x Ø 16 Ø 150 x 16 18
134 0,75 2800 Ø 200 x 25 x Ø 20 Ø 200 x 20
135 1,12 1400 Ø 250 x 30 x Ø 25 Ø 250 x 20
136 1,5 1400 Ø 250 x 35 x Ø 25 Ø 250 x 25
137 1,87 1400 Ø 300 x 35 x Ø 30 Ø 300 x 30
138 2,253 1400 Ø 300 x 40 x Ø 30 Ø 300 x 30
Single-phase
122 230 - Hz 50 - SPH 0,37 2800 Ø150 x 20 x Ø 16 Ø 150 x 16 18
140 0,75 2800 Ø 200 x 25 x Ø 20 Ø 200 x 20



Package dimensions
Mod. T U H kg
mm
121 470 220 250 15
134 650 300 460 17
135 760 380 340 31
136 850 380 360 49
137 900 420 410 62
138 900 420 410 62
122 470 220 250 15
140 570 300 300 19



-->
