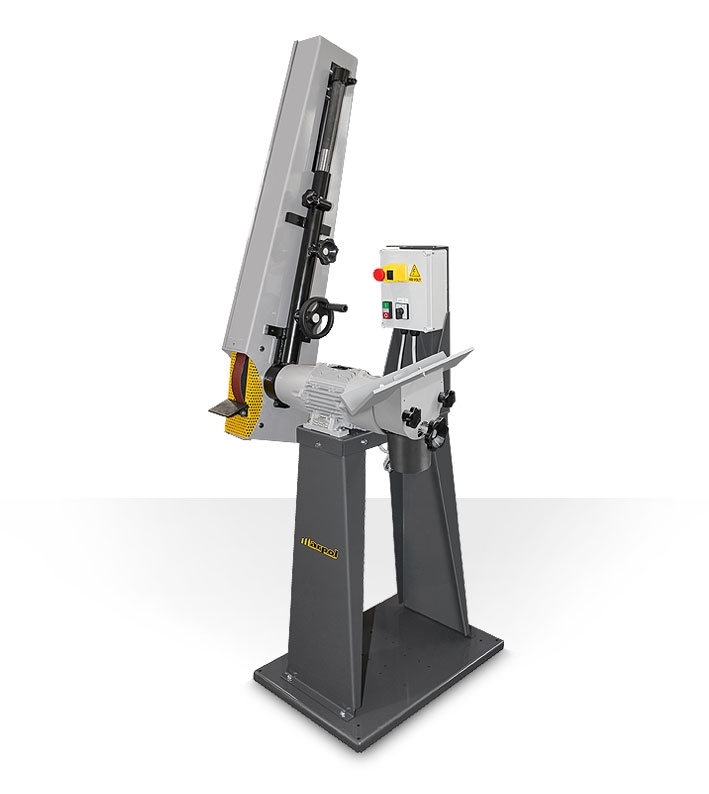

Telescopic belt swiveling sander combined with bevelling machine
mod. 583

Combined machine: telescopic sander and bevelling machine for dry machining of various materials.


Technical features

  • Telescopic sander combined with a bevelling machine.

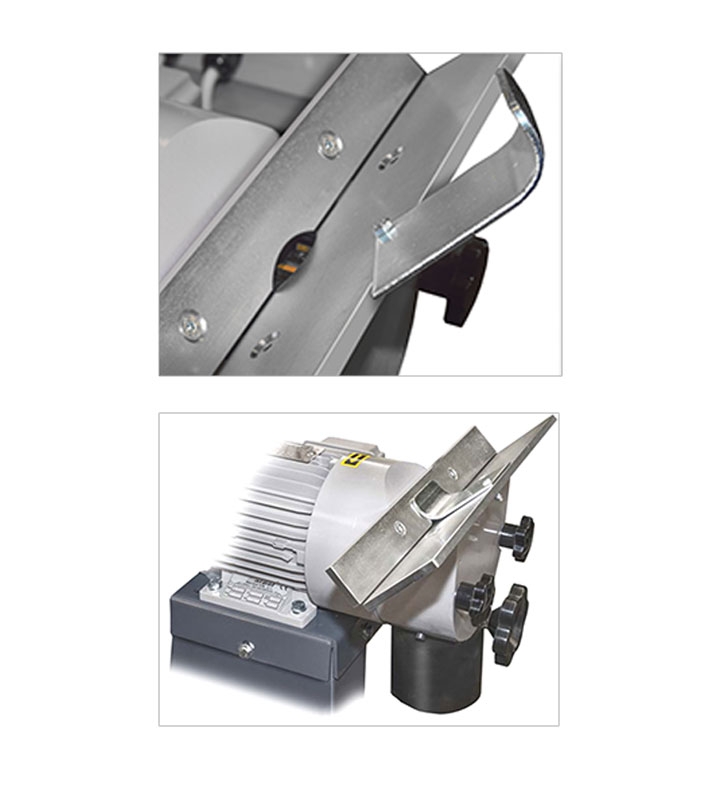

  • Combined with a precision bevelling machine with 8 hard-metal inserts in a cutter-holder with diameter mm 80.
  • Horizontal sander of considerable size and rigidity
  • Preset to install exhauster mod. ASP6 upon request
  • Two-speed motor
  • Abrasive belt: 50 x 2500 mm
  • Weight: 100 kg
  • Headphones mandatory (according to DIN EN 352)
Technical data

V 1 Speed 2 Speed A B C D E Mod. T U H Kg
kW Rpm m/s kW Rpm m/s mm mm
400 - Hz 50 - TPH 1,27 1400 15 1,27 1400 15 250 - - 50 2500 6 660 700 2100 100
1,7 2800 30
Cutter-holder dimensions
N O
mm
8 80
Workbench
SM P Q R
mm
10 40 80 400
-->
