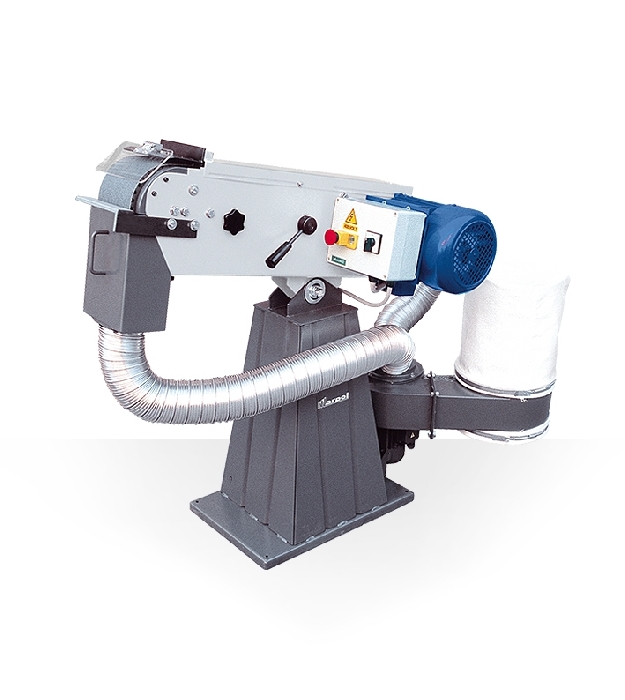

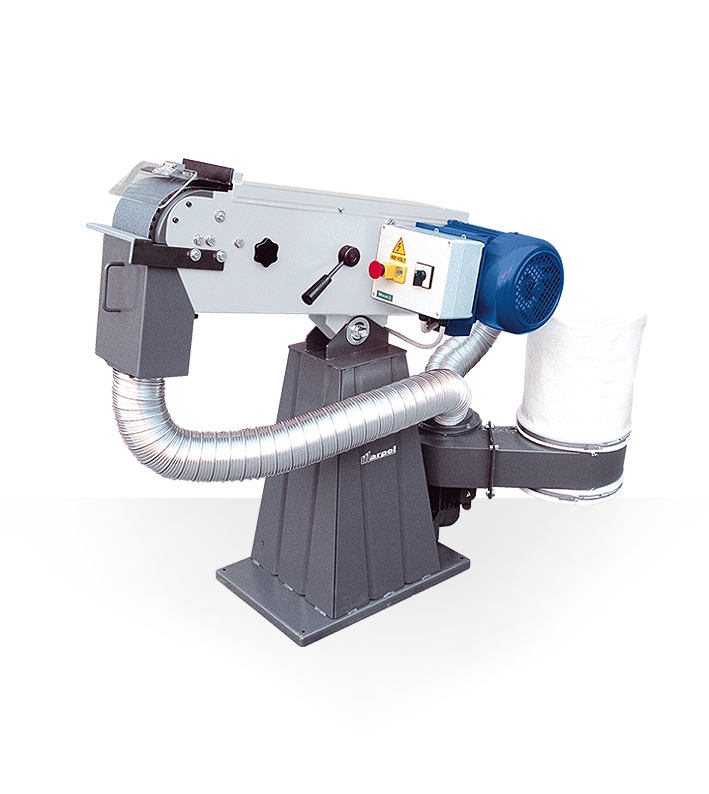

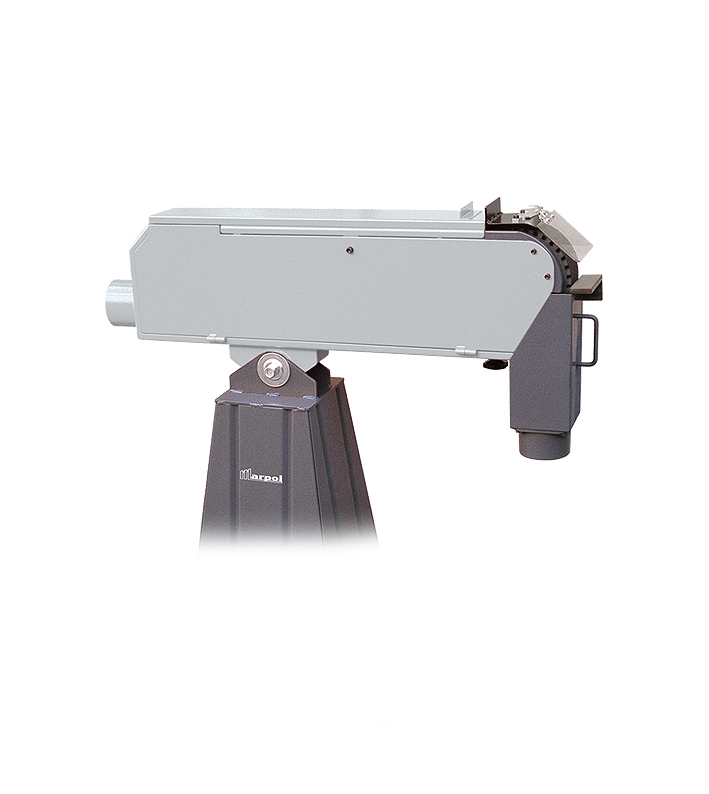

Swiveling belt sanders
mod. 1075/1150

Swiveling belt sanders for dry machining of metal, wood and plastic materials (with the adoption of appropriate abrasive belts).


Technical features

  • New colours and models at MARPOL F.R SRL.
  • A swivel sander to work on a roller or a rigid bench, with or without exhauster.
  • Maximum protection for an accurate and clean work.
  • The belt is constantly tensioned by the automatic system with calibrated springs that allows for a continuous work cycle without interruptions due to belt overheating.
  • Power supply: 400 Volt
  • Motor: from 3 kW to 4,5 kW - 1400/2800 Rpm
  • Abrasive belt: 75 x 2000 mm (mod. 1075) - 150 x 2000 mm (mod. 1150)
  • Weight: 90 Kg (mod. 1075) - 105 Kg (mod. 1150)
  • Headphones mandatory (according to DIN EN 352)



Technical data

Mod. V kW

Rpm

m/s mm Mod.
1075-1150/1/3 V 400 - Hz 50 3 2800 33 75x2000 4
1075-1150/2/3 2,6 1400 16,5
3,37 2800 33
1075-1150/1/4 4 2800 33 150x2000
1075-1150/2/4 3,4 1400 16,5 150x2000
4,5 2800 33
Overall dimensions
Mod. A B C Kg
mm
1075 390 1020 1045 90
1150 390 1055 1045 105



Package dimensions
Mod. T U H Kg
mm
1075 800 800 1200 100
1150 800 800 1200 115



-->
