Double brush polishing machines

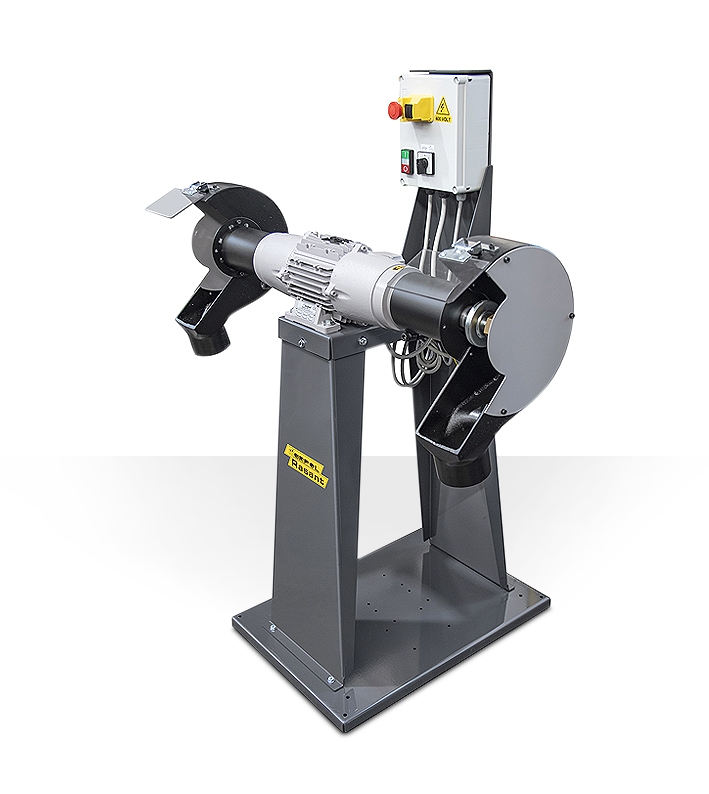

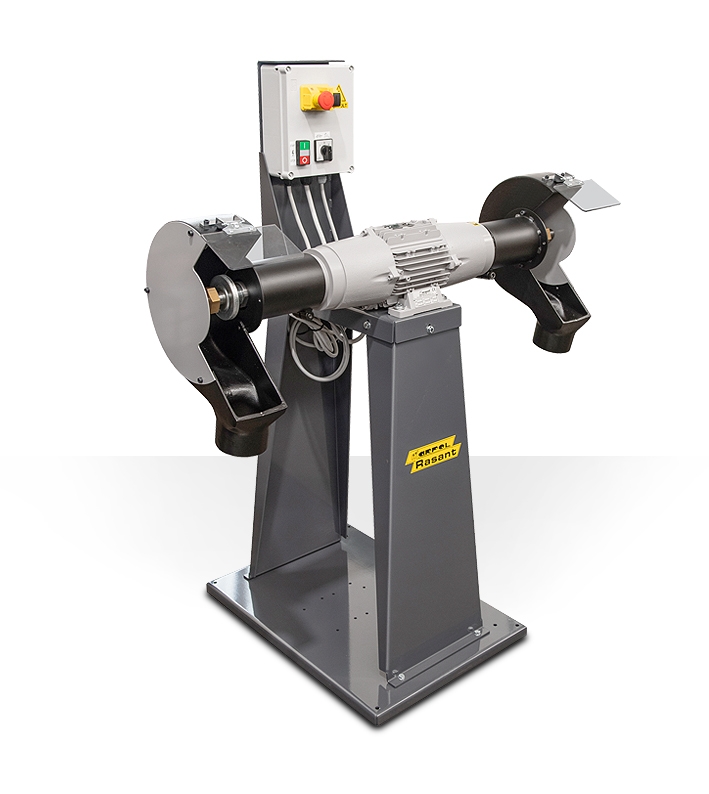

Double brush polishing machines
mod. 663/666

Brush polishing machines for dry processing of metal, wood and plastic materials (with the adoption of appropriate brushes). Flat or shaped pieces can be machined.


Technical features

  • Double-arm cleaner.
  • Two-speed motor
  • 1.7 / 2.3 HP - 3 / 4 HP - 1400 / 2800 Rpm
  • Brush: Ø250 x 25 x 60 mm
  • Headphones mandatory (according to DIN EN 352)
Technical data

Mod. V 1 Speed 2 Speed mm Mod.
kW Rpm m/s kW Rpm m/s
663 400 - Hz 50 - TPH

1,27

1400

 15 1,27 1400 15

N° 2
Ø250 x 25 x 60

 6
1,7 2800 30
666 400 - Hz 50 - TPH

2,25

1400

 15 2,25 1400 15 6
3 2800 30
Package dimensions
Mod. T U H Kg
mm
663 1050 700 1350 87
666 1050 700 1100 92



-->
